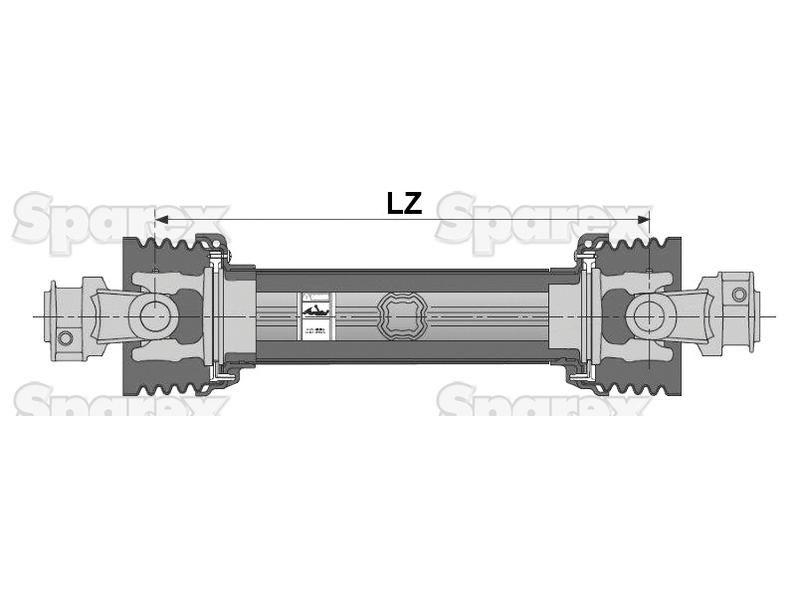

PTO Shaft - (Lz) Length: 1210mm, 1 3/8'' x 6 Spline Q.R. to 1 3/8'' x 6 Spline Q.R. Bondioli & Pavesi (CS8N121CE007007)
Part Number: S.165147Categories: PTO (shaft), Linkage
Part Number: S.165147
Grade: Replacement
Part Details
PTO Shaft - (Lz) Length: 1210mm, 1 3/8'' x 6 Spline Q.R. to 1 3/8'' x 6 Spline Q.R. HP Rating @ 540RPM: 90HP, Series: SFT S8.
Technical Information
| Brand | Bondioli & Pavesi |
| HP Rating @ 1000RPM | 136 |
| HP Rating @ 540RPM | 90 |
| HP Rating Range @ 540RPM | 55 to 119 |
| Implement End | 1 3/8'' x 6 Spline Q.R. |
| Italian Series | SFT S8 |
| Kilowatt Power Rating @ 1000RPM | 100 |
| Kilowatt Power Rating @ 540RPM | 66 |
| Lz Length mm | 1210 |
| PTO Series | SFT S8 |
| Reference | CS8N121CE007007 |
| Related Products | 24216, 165083, 165104, 165105, 165123, 165171, 165172 |
| Tariff Code | 8483908990 |
| Torque Newton Metres | 1171 |
| Torque Range Nm | 335 - 1240Nm |
| Tractor End | 1 3/8'' x 6 Spline Q.R. |
| Tube Profile | Square |
| Tube Ref | 12251/12209 |
| Universal Joint Dimensions | 34.9 x 93.5mm |
Manufacturer Part Numbers
| Bondioli & Pavesi |
|---|
| CS8N121CE007007 |
