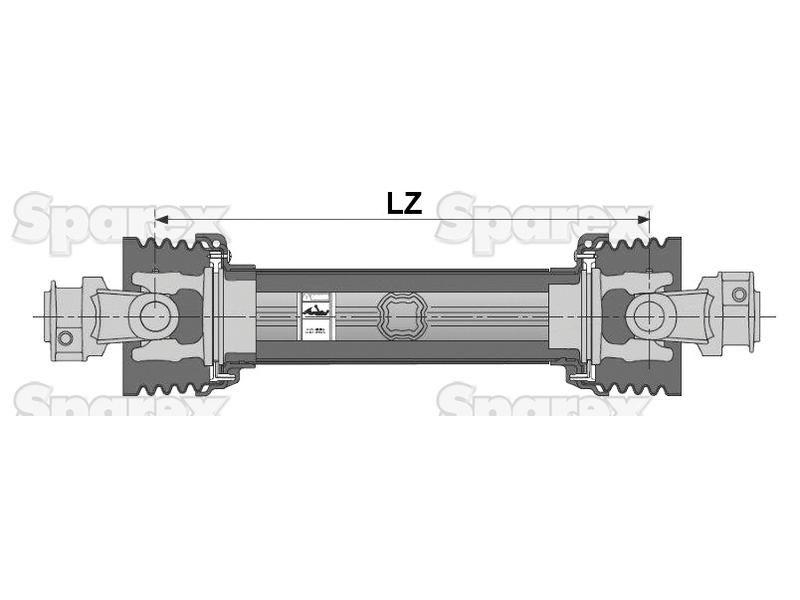

PTO Shaft - (Lz) Length: 1210mm, 1 3/8'' x 6 Spline Q.R. to 1 3/8'' x 6 Spline Q.R. Bondioli & Pavesi (CS6N121CE007007)
Part Number: S.165141Categories: PTO (shaft), Linkage
Part Number: S.165141
Grade: Replacement
Part Details
PTO Shaft - (Lz) Length: 1210mm, 1 3/8'' x 6 Spline Q.R. to 1 3/8'' x 6 Spline Q.R. HP Rating @ 540RPM: 55HP, Series: SFT S6.
Technical Information
| Brand | Bondioli & Pavesi |
| HP Rating @ 1000RPM | 83 |
| HP Rating @ 540RPM | 55 |
| HP Rating Range @ 540RPM | 55 to 119 |
| Implement End | 1 3/8'' x 6 Spline Q.R. |
| Italian Series | SFT S6 |
| Kilowatt Power Rating @ 1000RPM | 61 |
| Kilowatt Power Rating @ 540RPM | 40 |
| Lz Length mm | 1210 |
| PTO Series | SFT S6 |
| Reference | CS6N121CE007007 |
| Related Products | 24210, 165079, 165098, 165101, 165117, 165157, 165158 |
| Tariff Code | 8483908990 |
| Torque Newton Metres | 716 |
| Torque Range Nm | 335 - 1240Nm |
| Tractor End | 1 3/8'' x 6 Spline Q.R. |
| Tube Profile | Square |
| Tube Ref | 12244/12245 |
| Universal Joint Dimensions | 30.2 x 79.4mm |
Manufacturer Part Numbers
| Bondioli & Pavesi |
|---|
| CS6N121CE007007 |
