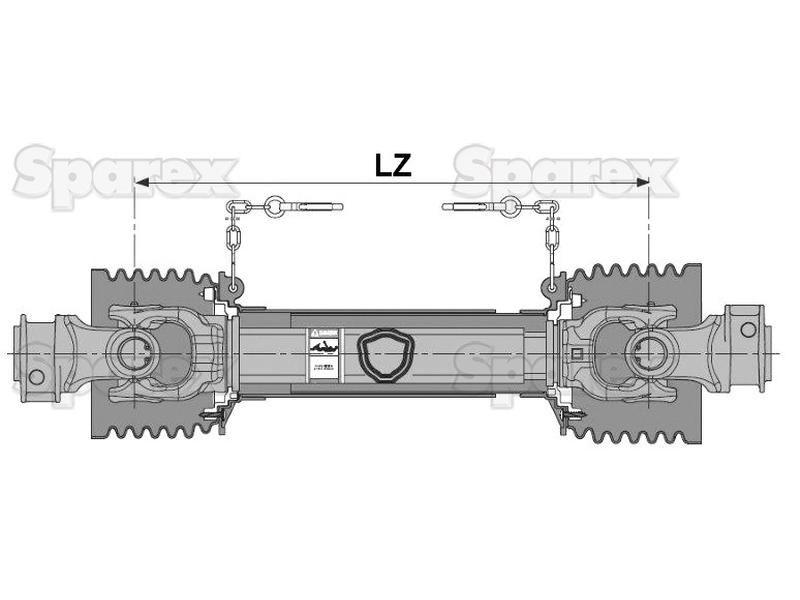

PTO Shaft - (Lz) Length: 1210mm, 1 3/8'' x 6 Spline Q.R. to 1 3/8'' x 6 Spline Q.R. Bondioli & Pavesi (7G2N121CE007007)
Part Number: S.165136Categories: PTO (shaft), Linkage
Part Number: S.165136
Grade: Replacement
Part Details
PTO Shaft - (Lz) Length: 1210mm, 1 3/8'' x 6 Spline Q.R. to 1 3/8'' x 6 Spline Q.R. HP Rating @ 540RPM: 21HP, Series: Global G2.
Technical Information
| Brand | Bondioli & Pavesi |
| HP Rating @ 1000RPM | 31 |
| HP Rating @ 540RPM | 21 |
| HP Rating Range @ 540RPM | up to 54 |
| Implement End | 1 3/8'' x 6 Spline Q.R. |
| Italian Series | Global G2 |
| Kilowatt Power Rating @ 1000RPM | 23 |
| Kilowatt Power Rating @ 540RPM | 15 |
| Lz Length mm | 1210 |
| PTO Series | Global G2 |
| Reference | 7G2N121CE007007 |
| Related Products | 111455, 165076, 165112 |
| Tariff Code | 8483908990 |
| Torque Newton Metres | 270 |
| Torque Range Nm | 210-334Nm |
| Tractor End | 1 3/8'' x 6 Spline Q.R. |
| Tube Profile | Triangle |
| Tube Ref | 12504/12505 |
| Universal Joint Dimensions | 23.8 x 61.2mm |
Manufacturer Part Numbers
| Bondioli & Pavesi |
|---|
| 7G2N121CE007007 |
