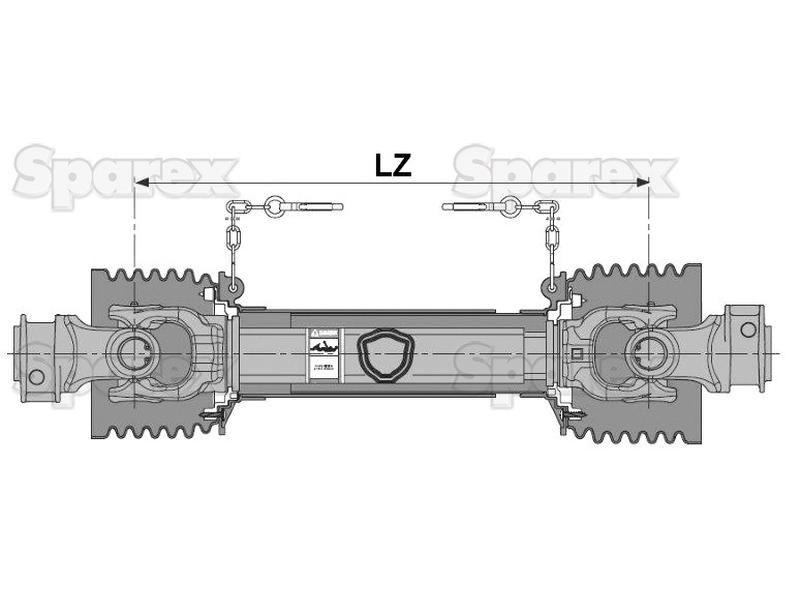

PTO Shaft - (Lz) Length: 1210mm, 1 3/8'' x 6 Spline Q.R. to 1 3/8'' x 6 Spline Q.R. Bondioli & Pavesi (7G1N121CE007007)
Part Number: S.165135Categories: PTO (shaft), Linkage
Part Number: S.165135
Grade: Replacement
Part Details
PTO Shaft - (Lz) Length: 1210mm, 1 3/8'' x 6 Spline Q.R. to 1 3/8'' x 6 Spline Q.R. HP Rating @ 540RPM: 16HP, Series: Global G1.
Technical Information
| Brand | Bondioli & Pavesi |
| HP Rating @ 1000RPM | 25 |
| HP Rating @ 540RPM | 16 |
| HP Rating Range @ 540RPM | up to 54 |
| Implement End | 1 3/8'' x 6 Spline Q.R. |
| Italian Series | Global G1 |
| Kilowatt Power Rating @ 1000RPM | 18 |
| Kilowatt Power Rating @ 540RPM | 12 |
| Lz Length mm | 1210 |
| PTO Series | Global G1 |
| Reference | 7G1N121CE007007 |
| Related Products | 165111 |
| Tariff Code | 8483908990 |
| Torque Newton Metres | 210 |
| Torque Range Nm | 40-210Nm |
| Tractor End | 1 3/8'' x 6 Spline Q.R. |
| Tube Profile | Triangle |
| Tube Ref | 12502/12503 |
| Universal Joint Dimensions | 22 x 54mm |
Manufacturer Part Numbers
| Bondioli & Pavesi |
|---|
| 7G1N121CE007007 |
