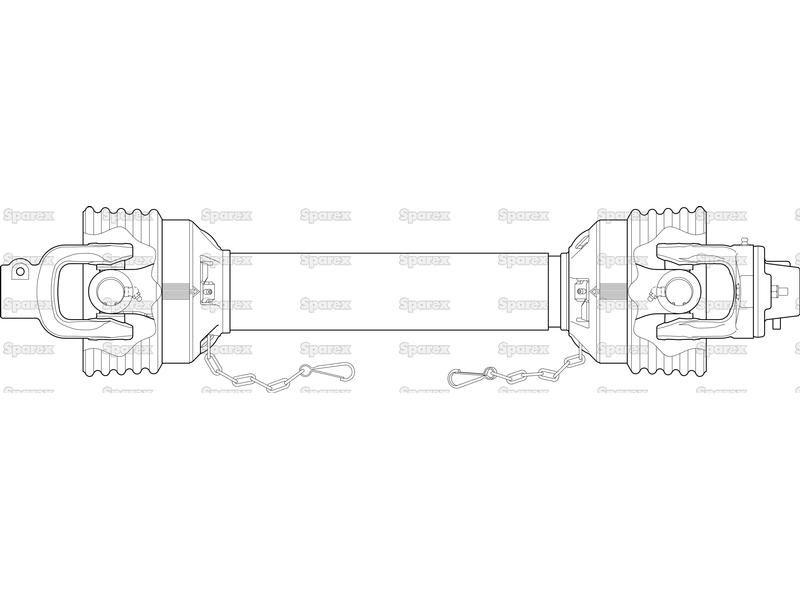

PTO Shaft - (Lz) Length: 1210mm, 1 3/8'' x 6 Spline Q.R. to 1 3/4'' x 6 Spline Shear Bolt Limiter
Part Number: S.155511Categories: PTO (shaft), Linkage
Part Number: S.155511
Grade: Replacement
Part Details
PTO Shaft - (Lz) Length: 1210mm, 1 3/8'' x 6 Spline Q.R. to 1 3/4'' x 6 Spline Shear Bolt Limiter HP Rating @ 540RPM: 100HP, Series: AB8N/A8N.
Technical Information
| Brand | Weasler |
| Guard Type | Easylock |
| HP Rating @ 540RPM | 100 |
| HP Rating Range @ 540RPM | 55 to 119 |
| Implement End | 1 3/4'' x 6 Spline Shear Bolt Limiter |
| Italian Series | AB8N/A8N |
| Kilowatt Power Rating @ 540RPM | 75 |
| Lz Length mm | 1210 |
| PTO Series | AB8N/A8N |
| Reference | 1680-6818-12124 |
| Related Products | 7539, 165467 |
| Tariff Code | 8483908990 |
| Torque Newton Metres | 2316 |
| Torque Range Nm | 2255 - 2900Nm |
| Total Closed Length mm | 1498 |
| Tractor End | 1 3/8'' x 6 Spline Q.R. |
| Tube Profile | Triangle |
| Tube Ref | 12512/12522 |
| Universal Joint Dimensions | 35 x 106.5mm |
