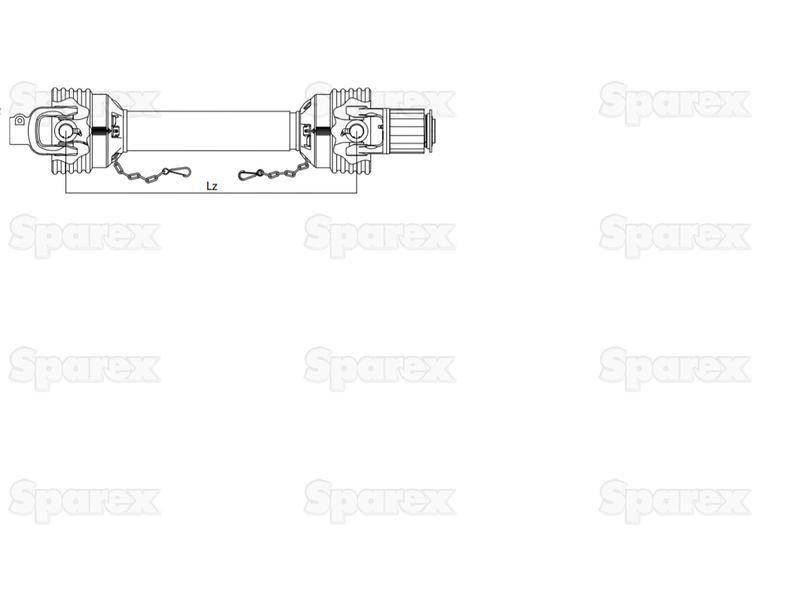

PTO Shaft - (Lz) Length: 1010mm, 1 3/8'' x 6 Spline Q.R. to 1 3/8'' x 6 Spline Ratchet Clutch
Part Number: S.39038Categories: PTO (shaft), Linkage
Part Number: S.39038
Grade: Replacement
Part Details
PTO Shaft - (Lz) Length: 1010mm, 1 3/8'' x 6 Spline Q.R. to 1 3/8'' x 6 Spline Ratchet Clutch HP Rating @ 540RPM: 36HP, Series: AW21/W2300.
Technical Information
| Brand | Weasler |
| Clutch Setting Nm | 900 |
| German Series | AW21/W2300 |
| Guard Type | Easylock |
| HP Rating @ 540RPM | 36 |
| HP Rating Range @ 540RPM | up to 54 |
| Implement End | 1 3/8'' x 6 Spline Ratchet Clutch |
| Kilowatt Power Rating @ 540RPM | 26 |
| Lz Length mm | 1010 |
| PTO Series | AW21/W2300 |
| Reference | 1620-7402-10103 |
| Related Products | 24193, 24194, 4193, 4194, 59609, 59632, 6046, 72448, 115406, 115407, 115439, 115442 |
| Tariff Code | 8483908990 |
| Torque Newton Metres | 780 |
| Torque Range Nm | 335 - 1240Nm |
| Total Closed Length mm | 1282 |
| Tractor End | 1 3/8'' x 6 Spline Q.R. |
| Tube Profile | Lemon |
| Tube Ref | Ov/1 |
| Universal Joint Dimensions | 27 x 74.5mm |
