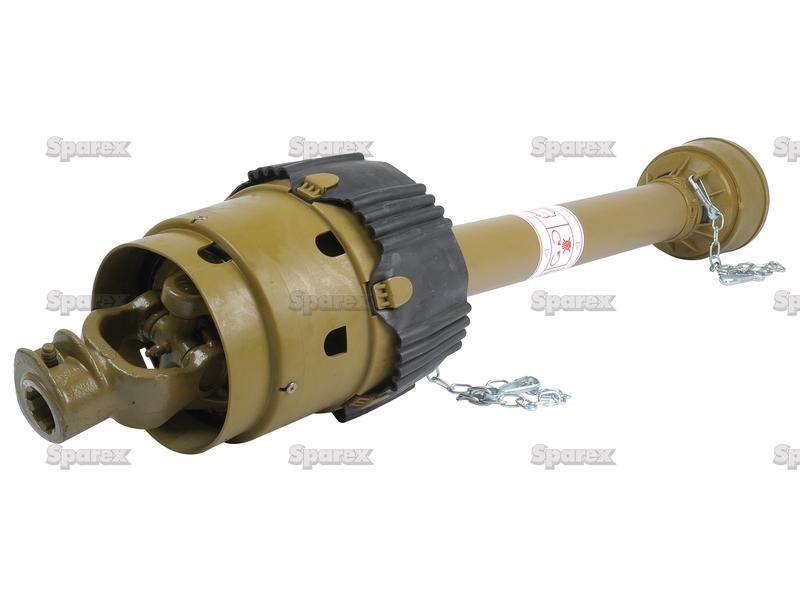

PTO Shaft - EUCV Wide Angle - One End, (Lz) Length: 720mm, 1 3/8'' x 6 Spline 80° W.A. to 1 3/8'' x 6 Spline Q.R.
Part Number: S.24748Categories: PTO (shaft), Linkage
Part Number: S.24748
Grade: Replacement
Part Details
PTO Shaft - EUCV Wide Angle - One End, (Lz) Length: 720mm, 1 3/8'' x 6 Spline 80° W.A. to 1 3/8'' x 6 Spline Q.R. HP Rating @ 540RPM: 90HP, Series: , AB8N-80°/A8N-80°
Technical Information
| Brand | Sparex |
| HP Rating @ 540RPM | 90 |
| HP Rating Range @ 540RPM | 55 to 119 |
| Implement End | 1 3/8'' x 6 Spline Q.R. |
| Italian Series | AB8N-80°/A8N-80° |
| Kilowatt Power Rating @ 540RPM | 67 |
| Lz Length mm | 720 |
| PTO Series | AB8N-80°/A8N-80° |
| Related Products | 10597, 10599, 10670, 50908, 59628, 59629, 59632, 6088, 6451 |
| Tariff Code | 8483908990 |
| Torque Newton Metres | 2250 |
| Torque Range Nm | 1245 - 2250Nm |
| Total Closed Length mm | 1200 |
| Tractor End | 1 3/8'' x 6 Spline 80° W.A. |
| Tube Profile | Triangle |
| Tube Ref | 24569/12521 |
| Universal Joint Dimensions | 36 x 89 & 32 x 106mm |
