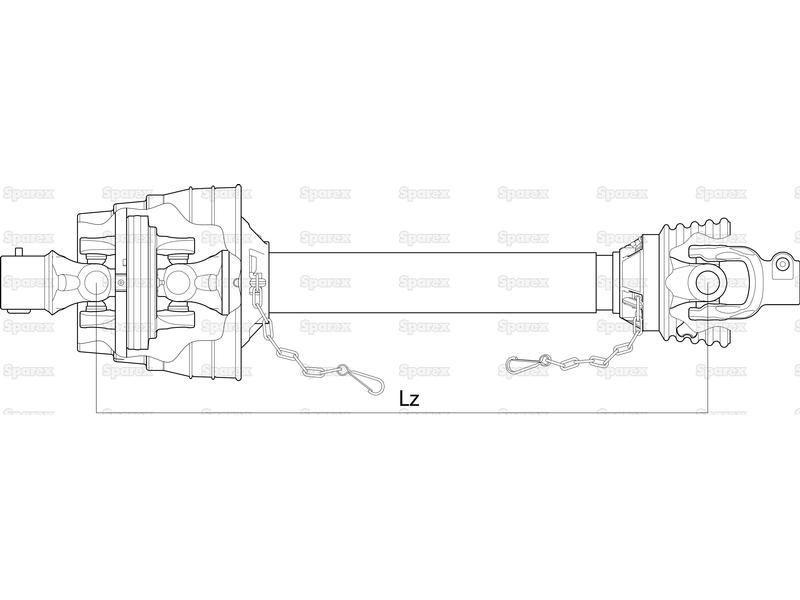

PTO Shaft - EUCV Wide Angle - One End, (Lz) Length: 1010mm, 1 3/8'' x 6 Spline 80° W.A. to 1 3/8'' x 6 Spline Q.R.
Part Number: S.118364Categories: PTO (shaft), Linkage
Part Number: S.118364
Grade: Replacement
Part Details
PTO Shaft - EUCV Wide Angle - One End, (Lz) Length: 1010mm, 1 3/8'' x 6 Spline 80° W.A. to 1 3/8'' x 6 Spline Q.R. HP Rating @ 540RPM: 52HP, Series: , AB6-80°/A6-80°
Technical Information
| Brand | Weasler |
| HP Rating @ 540RPM | 52 |
| HP Rating Range @ 540RPM | up to 54 |
| Implement End | 1 3/8'' x 6 Spline Q.R. |
| Italian Series | AB6-80°/A6-80° |
| Kilowatt Power Rating @ 540RPM | 39 |
| Lz Length mm | 1010 |
| PTO Series | AB6-80°/A6-80° |
| Reference | 1850-6602-101 |
| Tariff Code | 8483908990 |
| Torque Newton Metres | 1197 |
| Torque Range Nm | 335 - 1240Nm |
| Total Closed Length mm | 1255 |
| Tractor End | 1 3/8'' x 6 Spline 80° W.A. |
| Tube Profile | Triangle |
| Tube Ref | 24516/12517 |
| Universal Joint Dimensions | 32 x 76 & 27 x 94mm |
