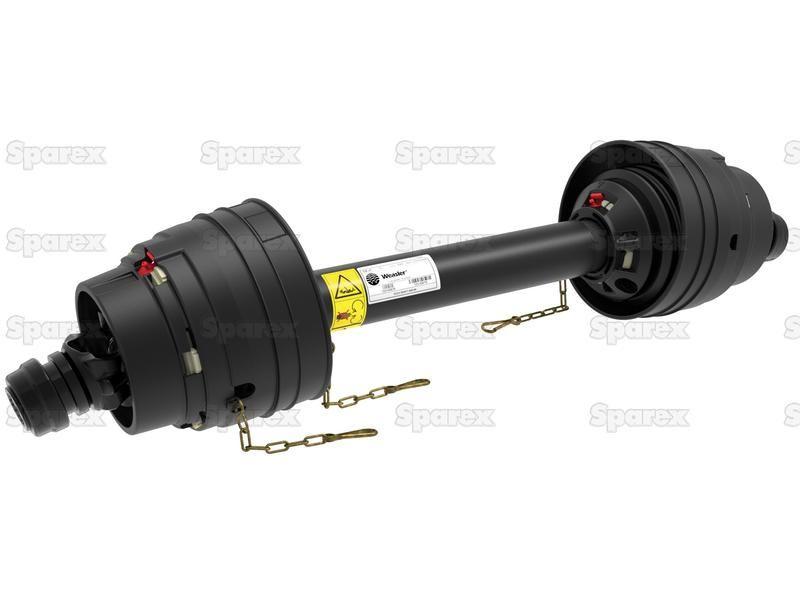

PTO Shaft - EUCV Wide Angle - Both Ends, (Lz) Length: 1010mm, 1 3/8'' x 6 Spline 80° W.A. to 1 3/8'' x 6 Spline 80° W.A.
Part Number: S.39030Categories: PTO (shaft), Linkage
Part Number: S.39030
Grade: Replacement
Part Details
PTO Shaft - EUCV Wide Angle - Both Ends, (Lz) Length: 1010mm, 1 3/8'' x 6 Spline 80° W.A. to 1 3/8'' x 6 Spline 80° W.A. HP Rating @ 540RPM: 52HP, Series: AW35/W2480,
Technical Information
| Brand | Weasler |
| German Series | AW35/W2480 |
| HP Rating @ 540RPM | 52 |
| HP Rating Range @ 540RPM | up to 54 |
| Implement End | 1 3/8'' x 6 Spline 80° W.A. |
| Kilowatt Power Rating @ 540RPM | 39 |

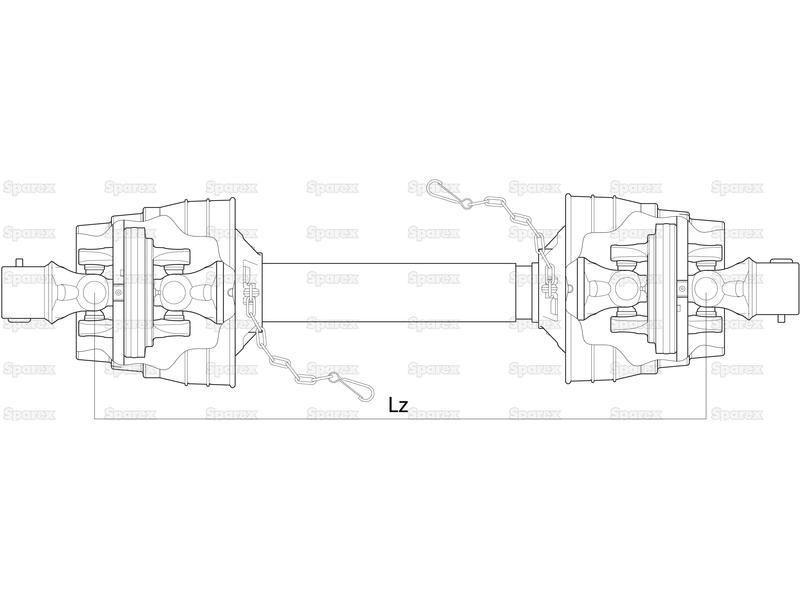

| Lz Length mm | 1010 |
| PTO Series | AW35/W2480 |
| Reference | 1855-7602-101 |
| Tariff Code | 8483908990 |
| Torque Newton Metres | 1240 |
| Torque Range Nm | 335 - 1240Nm |
| Total Closed Length mm | 1210 |
| Tractor End | 1 3/8'' x 6 Spline 80° W.A. |
| Tube Profile | Lemon |
| Tube Ref | 1bGA/2aG |
| Universal Joint Dimensions | 32 x 76 & 27 x 94mm |
