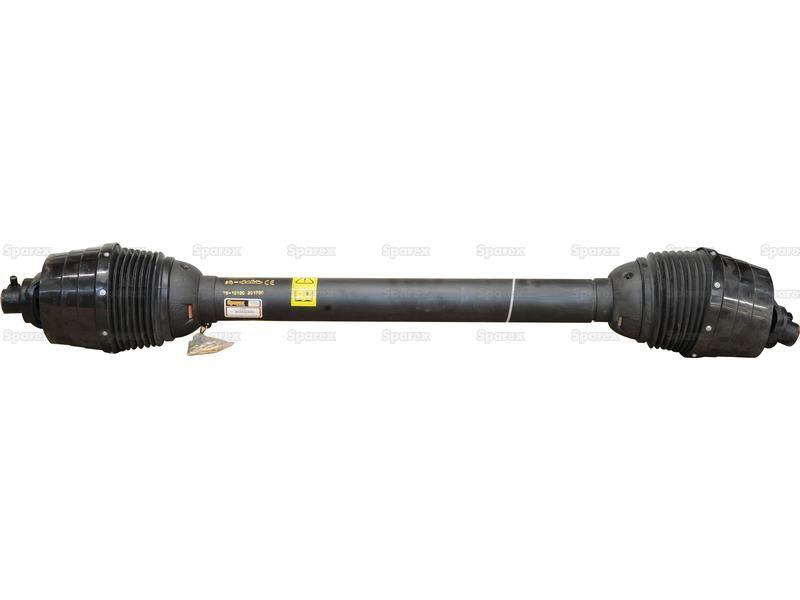

PTO Shaft - EUCV Wide Angle - Both Ends, (Lz) Length: 1010mm, 1 3/8'' x 6 Spline 80° W.A. to 1 3/8'' x 6 Spline 80° W.A.

Part Number: S.119796Categories: PTO (shaft), Linkage
PTO Shaft - EUCV Wide Angle - Both Ends, (Lz) Length: 1010mm, 1 3/8'' x 6 Spline 80° W.A. to 1 3/8'' x 6 Spline 80° W.A.
PTO Shaft - EUCV Wide Angle - Both Ends, (Lz) Length: 1010mm, 1 3/8'' x 6 Spline 80° W.A. to 1 3/8'' x 6 Spline 80° W.A.
PTO Shaft - EUCV Wide Angle - Both Ends, (Lz) Length: 1010mm, 1 3/8'' x 6 Spline 80° W.A. to 1 3/8'' x 6 Spline 80° W.A.

Part Number: S.119796

Grade: Replacement

Part Details

PTO Shaft - EUCV Wide Angle - Both Ends, (Lz) Length: 1010mm, 1 3/8'' x 6 Spline 80° W.A. to 1 3/8'' x 6 Spline 80° W.A. HP Rating @ 540RPM: 55HP, Series: , AB6-80°/A6-80°

Technical Information

Brand Sparex
HP Rating @ 540RPM 55
HP Rating Range @ 540RPM 55 to 119
Implement End 1 3/8'' x 6 Spline 80° W.A.
Italian Series AB6-80°/A6-80°
Kilowatt Power Rating @ 540RPM 41

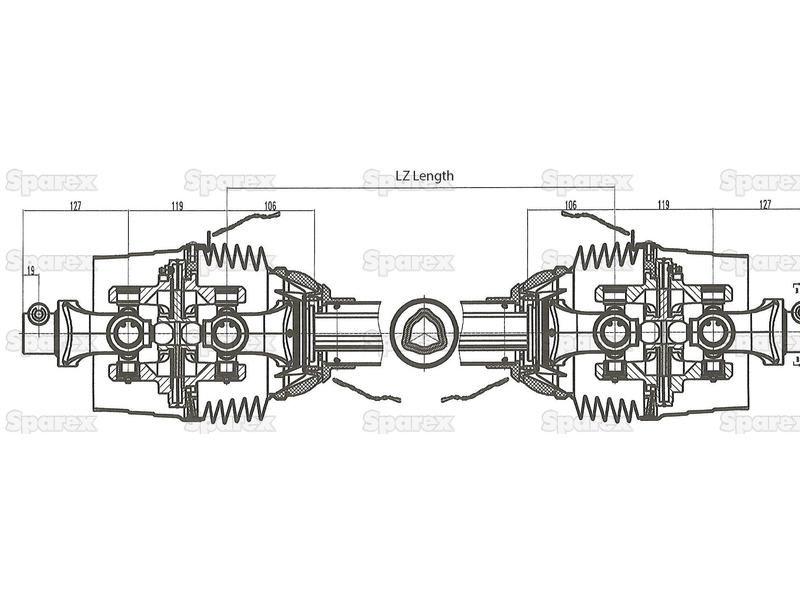

Lz Length mm 1010
Notes No spare parts available
PTO Series AB6-80°/A6-80°
Tariff Code 8483908990
Torque Newton Metres 1450
Torque Range Nm 1245 - 2250Nm
Total Closed Length mm 1502
Tractor End 1 3/8'' x 6 Spline 80° W.A.
Tube Profile Triangle
Tube Ref 24516/12517
Universal Joint Dimensions 27 x 92 & 30.2 x 100mm
