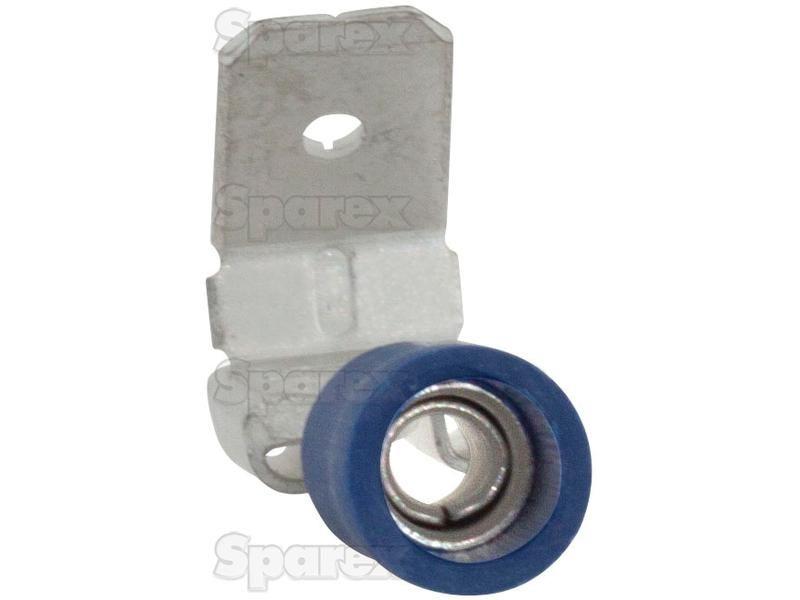

Pre Insulated Spade Terminal, Standard Grip - Male / Female, 6.3mm, Blue (1.5 - 2.5mm)
Part Number: S.8547Categories: Electrical Accessories
Part Number: S.8547
Grade: Replacement
Part Details
Pre Insulated Spade Terminal, Standard Grip - Male / Female, 6.3mm, Blue (1.5 - 2.5mm) Max. Volts: 300VMax. Rating: 15AmpsTemperature range: -10°C to +75°C
Technical Information

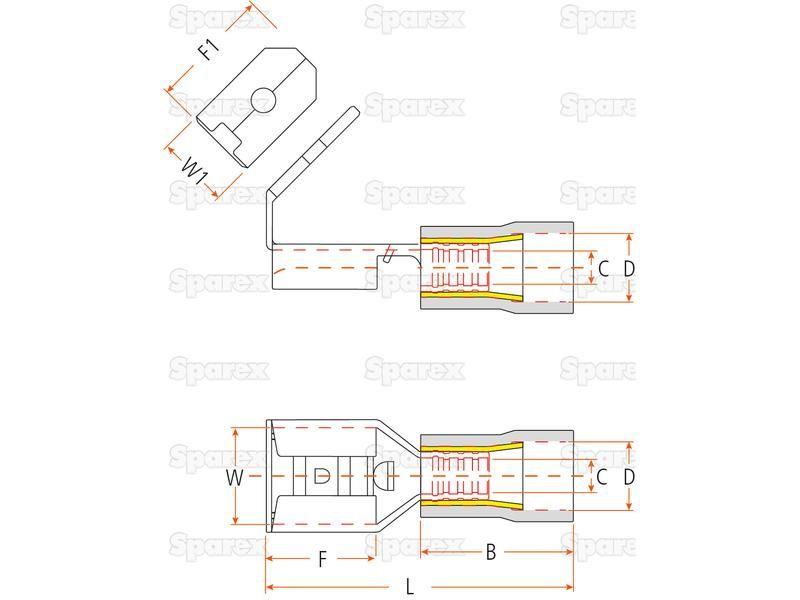

| B mm | 10 |
| Brand | Sparex |
| C mm | 2.3 |
| Colour | Blue |
| Crimp Type | Standard Grip |
| D mm | 4.7 |
| F mm | 8 |
| F1 mm | 8.2 |
| L mm | 21 |
| Male Female | Female Spade with Male Branch |
| Maximum Current Rating | 15Amps |
| Maximum Volts | 300V |
| Olvis | 562 |
| Pack Type | Bag |
| Related Products | 12419, 12420, 14331, 14688, 20726, 8575 |
| Size mm | 6.3 |
| Tariff Code | 8547900000 |
| Temperature Range | -10°C to +75°C |
| W mm | 6.7 |
| W1 mm | 6.4 |
| Wire csa mm2 | 1.5 - 2.5 |
