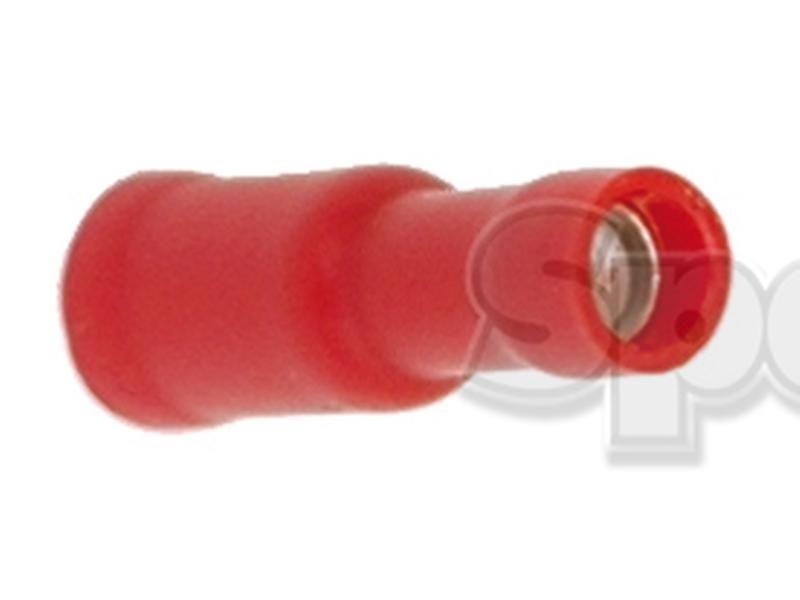

Pre Insulated Bullet Terminal, Standard Crimp - Female, 4.0mm, Red (0.5 - 1.5mm)
Part Number: S.12410Categories: Electrical Accessories
Part Number: S.12410
Grade: Replacement
Part Details
Pre Insulated Bullet Terminal, Standard Crimp - Female, 4.0mm, Red (0.5 - 1.5mm) Max. Volts: 300VMax. Rating: 10AmpsTemperature range: -10°C to +75°C

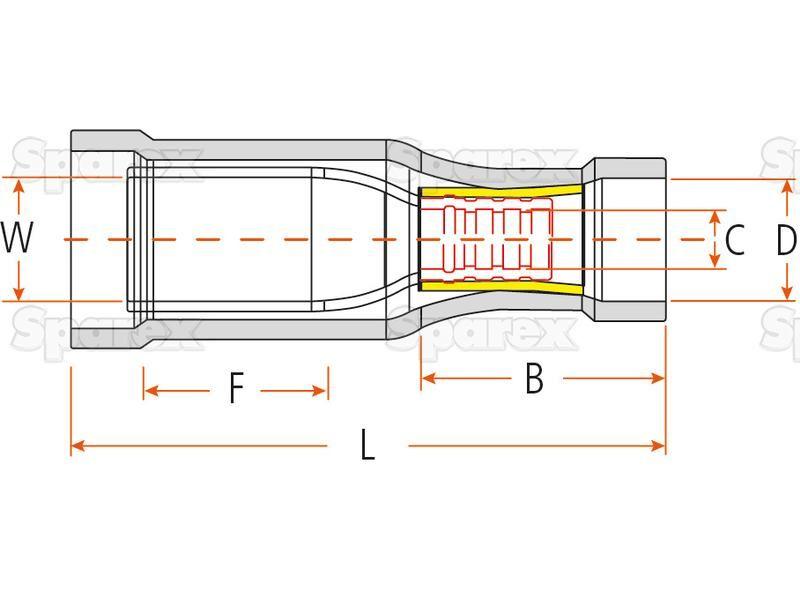

Technical Information
| B mm | 10.5 |
| Brand | Sparex |
| C mm | 1.7 |
| Colour | Red |
| D mm | 3.8 |
| F mm | 7.3 |
| L mm | 25.5 |
| Male Female | Female |
| Maximum Current Rating | 10Amps |
| Maximum Volts | 300V |
| Olvis | 548 |
| Pack Type | Bag |
| Related Products | 12411, 12419, 12420, 14331, 14672, 20728 |
| Size mm | 4.0 |
| Tariff Code | 8547900000 |
| Temperature Range | -10°C to +75°C |
| W mm | 3.9 |
| Wire csa mm2 | 0.5 - 1.5 |
