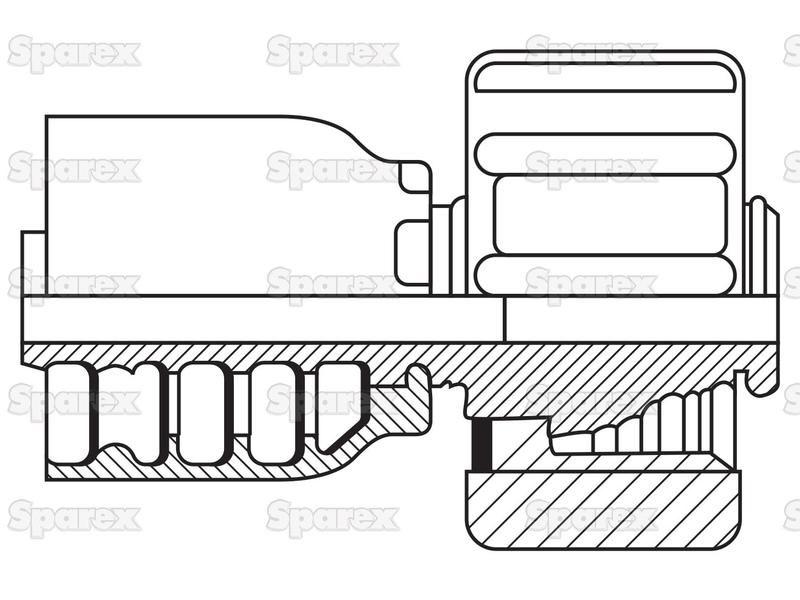

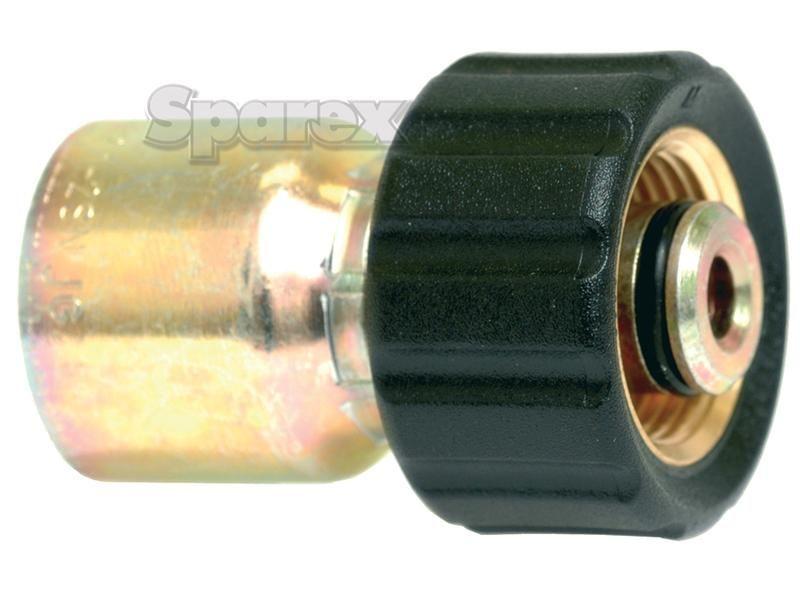

Parker Metric (Karcher) 5/16'' x M22 x 1.5 Female Straight Swivel
Part Number: S.3772205Categories: Hydraulics
Part Number: S.3772205
Grade: Replacement
Part Details
Parker Metric (Karcher) 5/16'' x M22 x 1.5 Female Straight Swivel Series 48A 53B 29H W
Technical Information
| A mm | 53 |
| B mm | 29 |
| Brand | Parker |
| Degrees | 0° |
| Fitting | 1 Piece Fitting |
| Hose inner Ø ins | 5/16 |
| Hose inner Ø mm | 7.9 |
| Male Female | Female |
| Nominal I.D. | DN08 |
| Position | Straight Swivel |
| Reference | 1CW48-15-5 |
| Series | 48 |
| Tariff Code | 7307199000 |
| Thread size | M22 x 1.50 |
| Thread type | Metric (Karcher) |
