Parker Metric Hose Insert 5/8'' x M24 x 1.50 Female Straight Swivel Heavy Series PARKER HANNIFIN (1C948-16-10)
Part Number: S.3422410Categories: Hydraulics
Part Number: S.3422410
Grade: Replacement
Part Details

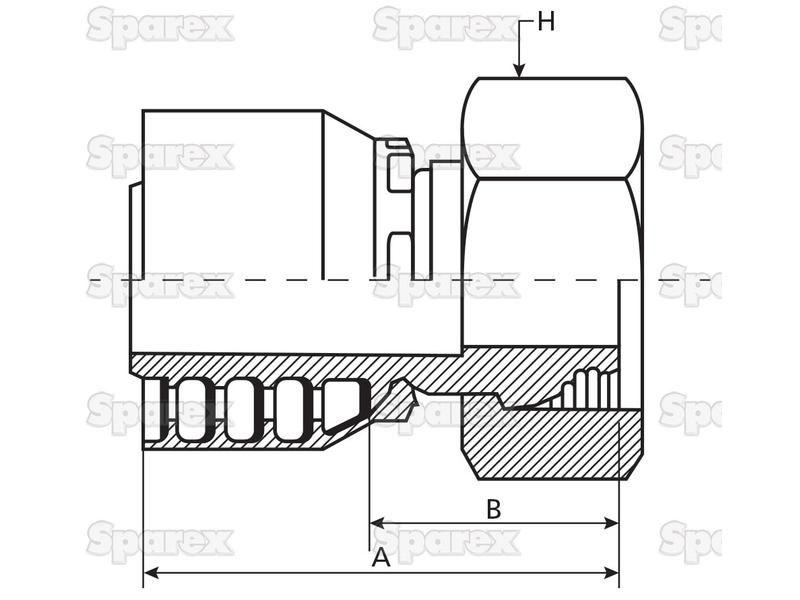

Parker Metric Hose Insert 5/8'' x M24 x 1.50 Female Straight Swivel Heavy Series A (mm) 54B (mm) 28H (mm)
Technical Information
| A mm | 54 |
| B mm | 28 |
| Brand | Parker |
| Fitting | 1 Piece Fitting |
| Hose inner Ø ins | 5/8 |
| Hose inner Ø mm | 15.8 |
| Male Female | Female |
| Nominal I.D. | DN16 |
| Position | Straight Swivel Heavy Series |
| Reference | 1C948-16-10 |
| Series | 48 |
| Tariff Code | 7307199000 |
| Thread size | M24 x 1.50 |
| Thread type | Metric |
| W mm | 30 |
Manufacturer Part Numbers
| PARKER HANNIFIN |
|---|
| 1C948-16-10 |
