Parker Metric Hose Insert 3/8'' x M22 x 1.50 Female 90° Swept Swivel Light Series PARKER HANNIFIN (1CF48-15-6)
Part Number: S.3332206Categories: Hydraulics
Part Number: S.3332206
Grade: Replacement
Part Details

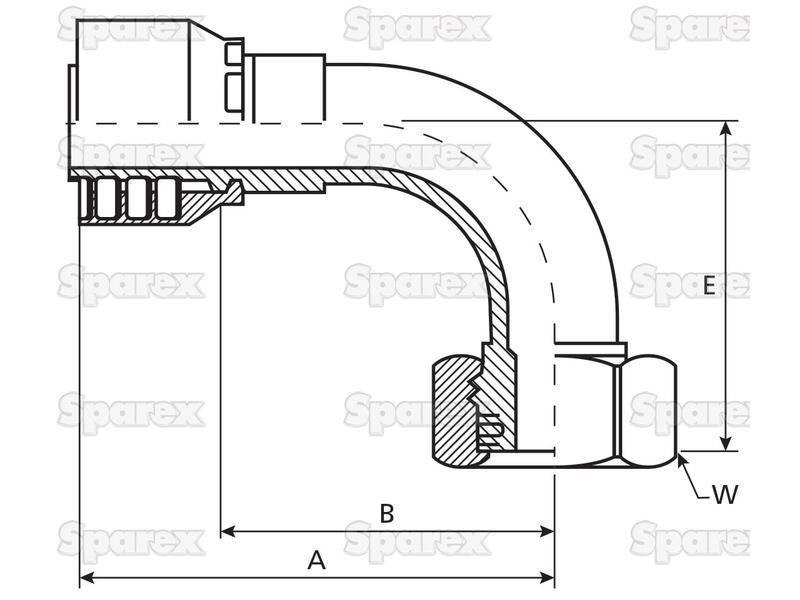

Parker Metric Hose Insert 3/8'' x M22 x 1.50 Female 90° Swept Swivel Light Series A (mm) 58B (mm) 35E (mm) 36H (mm) 27
Technical Information
| A mm | 58 |
| B mm | 35 |
| Brand | Parker |
| E mm | 36 |
| Fitting | 1 Piece Fitting |
| H mm | 27 |
| Hose inner Ø ins | 3/8 |
| Hose inner Ø mm | 9.5 |
| Male Female | Female |
| Nominal I.D. | DN10 |
| Position | 90° Swept Swivel Light Series |
| Reference | 1CF48-15-6 |
| Series | 48 |
| Tariff Code | 7307199000 |
| Thread size | M22 x 1.50 |
| Thread type | Metric |
Manufacturer Part Numbers
| PARKER HANNIFIN |
|---|
| 1CF48-15-6 |
