Parker Metric Hose Insert 3/8'' x M20 x 1.50 Female Straight Swivel Heavy Series PARKER HANNIFIN (1C948-12-6)
Part Number: S.3422006Categories: Hydraulics
Part Number: S.3422006
Grade: Replacement
Part Details

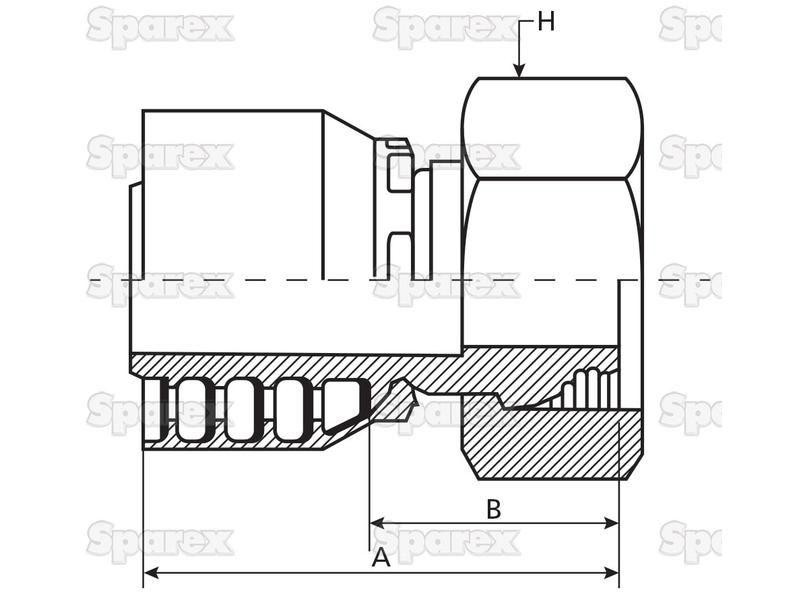

Parker Metric Hose Insert 3/8'' x M20 x 1.50 Female Straight Swivel Heavy Series A (mm) 48B (mm) 25H (mm)
Technical Information
| A mm | 48 |
| B mm | 25 |
| Brand | Parker |
| Fitting | 1 Piece Fitting |
| Hose inner Ø ins | 3/8 |
| Hose inner Ø mm | 9.5 |
| Male Female | Female |
| Nominal I.D. | DN10 |
| Position | Straight Swivel Heavy Series |
| Reference | 1C948-12-6 |
| Series | 48 |
| Tariff Code | 7307199000 |
| Thread size | M20 x 1.50 |
| Thread type | Metric |
| Type | Female |
| W mm | 24 |
Manufacturer Part Numbers
| PARKER HANNIFIN |
|---|
| 1C948-12-6 |
