Parker Metric Hose Insert 1/4'' x M20 x 1.50 Female Straight Swivel Heavy Series PARKER HANNIFIN (1C948-12-4)
Part Number: S.3422004Categories: Hydraulics
Part Number: S.3422004
Grade: Replacement
Part Details

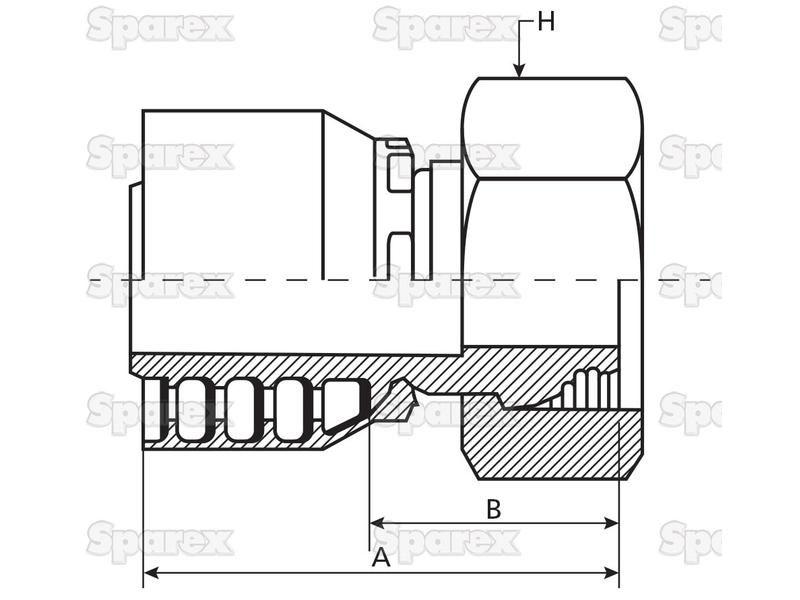

Parker Metric Hose Insert 1/4'' x M20 x 1.50 Female Straight Swivel Heavy Series A (mm) 47B (mm) 24H (mm)
Technical Information
| A mm | 47 |
| B mm | 24 |
| Brand | Parker |
| Fitting | 1 Piece Fitting |
| Hose inner Ø ins | 1/4 |
| Hose inner Ø mm | 6.3 |
| Male Female | Female |
| Nominal I.D. | DN06 |
| Position | Straight Swivel Heavy Series |
| Reference | 1C948-12-4 |
| Series | 48 |
| Tariff Code | 7307199000 |
| Thread size | M20 x 1.50 |
| Thread type | Metric |
| W mm | 24 |
Manufacturer Part Numbers
| PARKER HANNIFIN |
|---|
| 1C948-12-4 |
