Parker Metric Hose Insert 1/4'' x M18 x 1.50 Female 90° Swept Swivel Light Series PARKER HANNIFIN (1CF48-12-4)
Part Number: S.3331804Categories: Hydraulics
Part Number: S.3331804
Grade: Replacement
Part Details

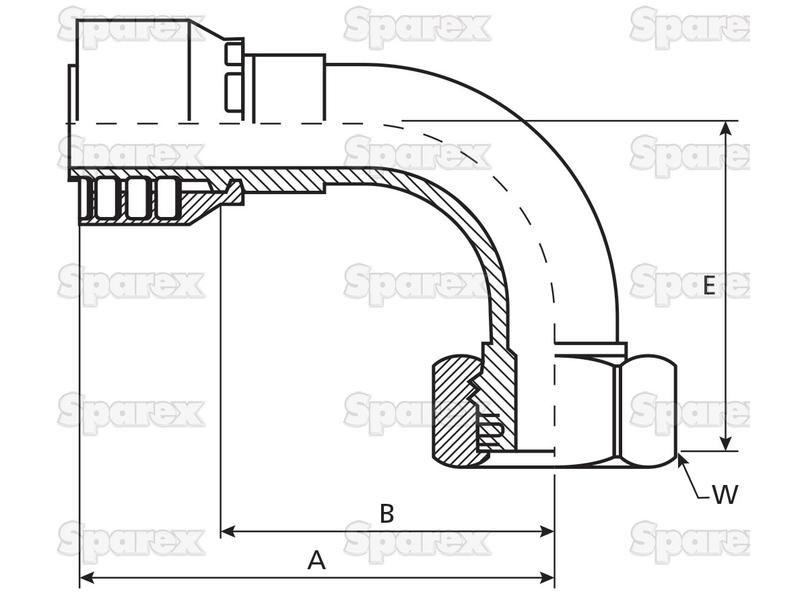

Parker Metric Hose Insert 1/4'' x M18 x 1.50 Female 90° Swept Swivel Light Series A (mm) 50B (mm) 26E (mm) 29H (mm)
Technical Information
| A mm | 50 |
| B mm | 26 |
| Brand | Parker |
| E mm | 29 |
| Fitting | 1 Piece Fitting |
| Hose inner Ø ins | 1/4 |
| Hose inner Ø mm | 6.3 |
| Male Female | Female |
| Nominal I.D. | DN06 |
| Position | 90° Swept Swivel Light Series |
| Reference | 1CF48-12-4 |
| Series | 48 |
| Tariff Code | 7307199000 |
| Thread size | M18 x 1.50 |
| Thread type | Metric |
| W mm | 22 |
Manufacturer Part Numbers
| PARKER HANNIFIN |
|---|
| 1CF48-12-4 |
