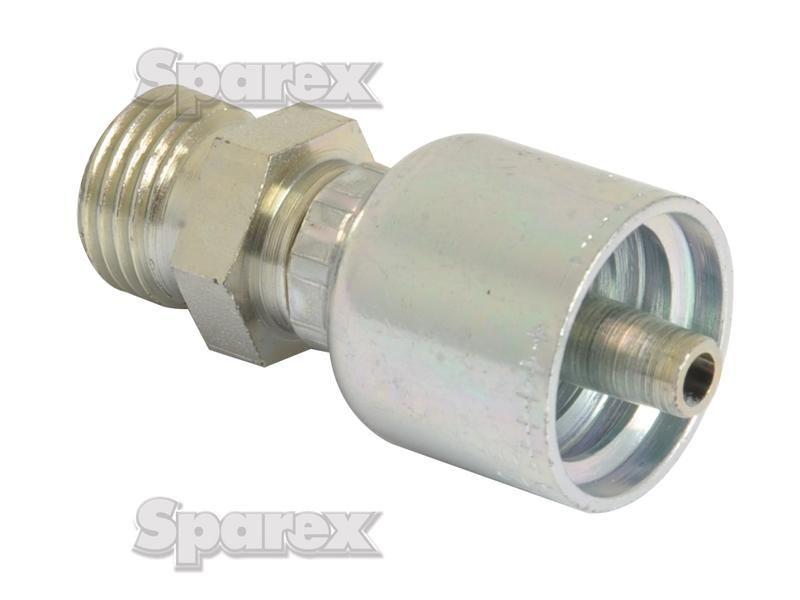

Parker Metric Hose Insert 1/4'' x M16 x 1.50 Male Straight Light Series PARKER HANNIFIN (1D048-10-4)
Part Number: S.3311604Categories: Hydraulics
Part Number: S.3311604
Grade: Replacement
Part Details

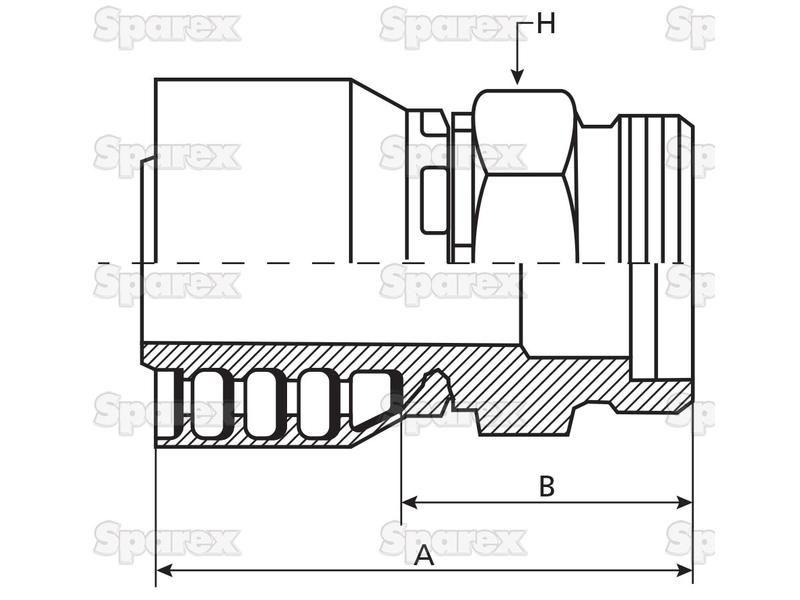

Parker Metric Hose Insert 1/4'' x M16 x 1.50 Male Straight Light Series A (mm) 48B (mm) 24H (mm) 17
Technical Information
| A mm | 48 |
| B mm | 24 |
| Brand | Parker |
| Fitting | 1 Piece Fitting |
| H mm | 17 |
| Hose inner Ø ins | 1/4 |
| Hose inner Ø mm | 6.3 |
| Male Female | Male |
| Nominal I.D. | DN06 |
| Position | Straight Light Series |
| Reference | 1D048-10-4 |
| Series | 48 |
| Tariff Code | 7307199000 |
| Thread size | M16 x 1.50 |
| Thread type | Metric |
| Type | Male |
Manufacturer Part Numbers
| PARKER HANNIFIN |
|---|
| 1D048-10-4 |
