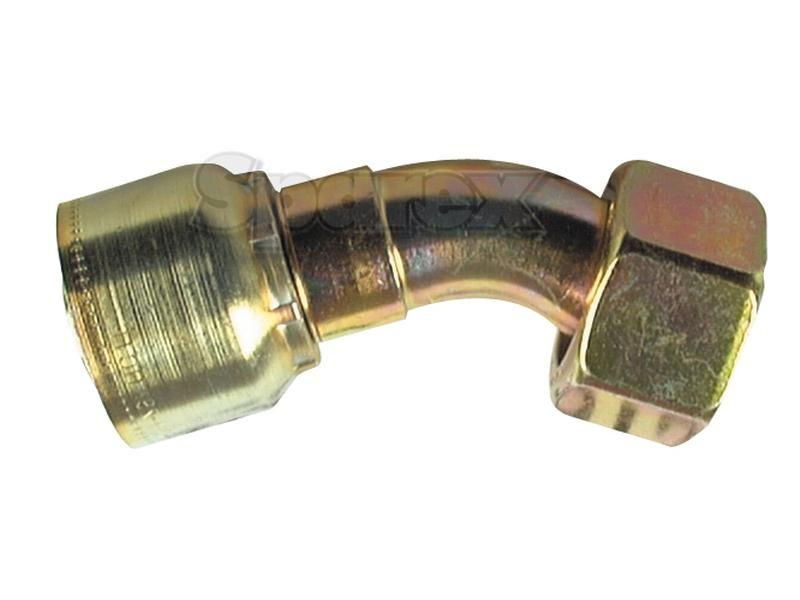

Parker Metric Hose Insert 1/2'' x M22 x 1.50 Female 135° Swept Swivel Light Series
Part Number: S.3342208Categories: Hydraulics
Part Number: S.3342208
Grade: Replacement
Part Details

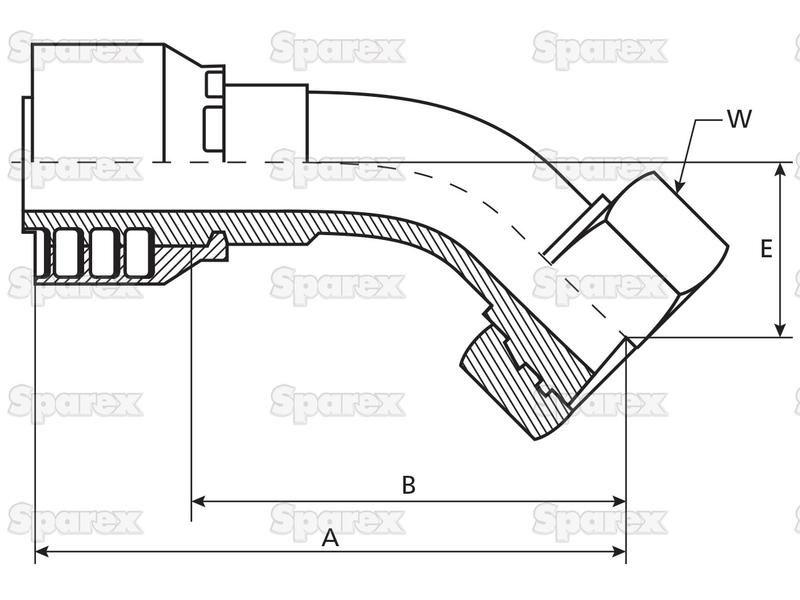

Parker Metric Hose Insert 1/2'' x M22 x 1.50 Female 135° Swept Swivel Light Series A (mm) 71B (mm) 47E (mm) 22H (mm)
Technical Information
| A mm | 71 |
| B mm | 47 |
| Brand | Parker |
| E mm | 22 |
| Fitting | 1 Piece Fitting |
| Hose inner Ø ins | 1/2 |
| Hose inner Ø mm | 12.7 |
| Male Female | Female |
| Nominal I.D. | DN12 |
| Position | 135° Swept Swivel Light Series |
| Reference | 1CE48-15-8 |
| Series | 48 |
| Tariff Code | 7307199000 |
| Thread size | M22 x 1.50 |
| Thread type | Metric |
| Type | 135° Swept Female |
