Parker JIC 37° Hose Insert 5/8'' x 7/8'' x 16'' Female Straight Swivel PARKER HANNIFIN (16848-10-10)
Part Number: S.3221410Categories: Hydraulics
Part Number: S.3221410
Grade: Replacement
Part Details

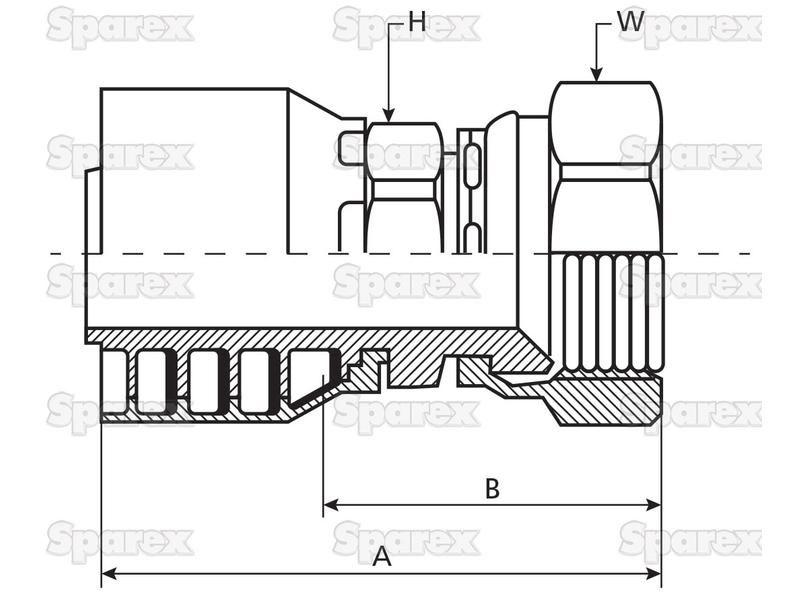

Parker JIC 37° Hose Insert 5/8'' x 7/8'' x 16'' Female Straight Swivel A (mm) 60B (mm) 35H1 (mm) 15H2 (mm)
Technical Information
| A mm | 60 |
| B mm | 35 |
| Brand | Parker |
| Cone angle | 37° |
| Fitting | 1 Piece Fitting |
| H mm | 22 |
| Hose inner Ø ins | 5/8 |
| Hose inner Ø mm | 15.8 |
| Male Female | Female |
| Nominal I.D. | DN16 |
| Position | Straight Swivel |
| Reference | 16848-10-10 |
| Series | 48 |
| Tariff Code | 7307199000 |
| Thread size | 7/8'' x 16 |
| Thread type | JIC |
| Type | JIC Female |
| W mm | 27 |
Manufacturer Part Numbers
| PARKER HANNIFIN |
|---|
| 16848-10-10 |
