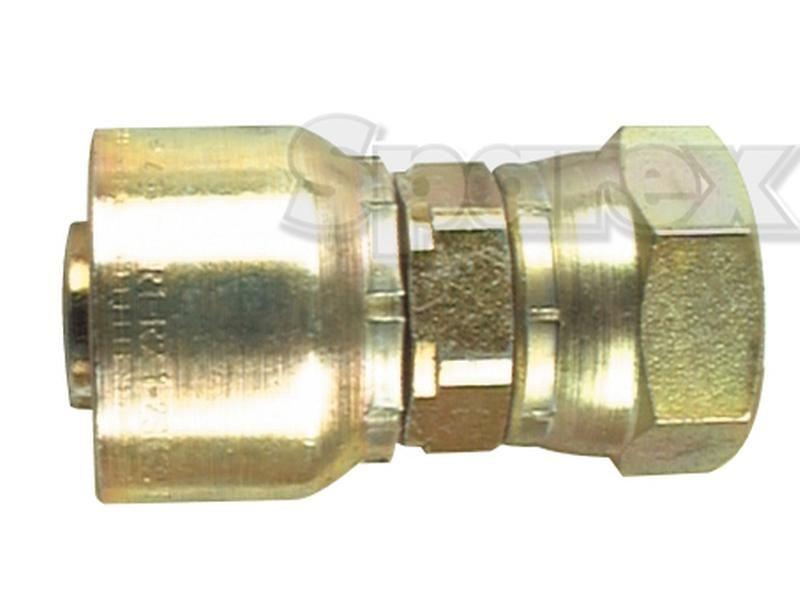

Parker JIC 37° Hose Insert 5/16'' x 9/16'' x 18'' Female Straight Swivel
Part Number: S.3220905Categories: Hydraulics
Part Number: S.3220905
Grade: Replacement
Part Details

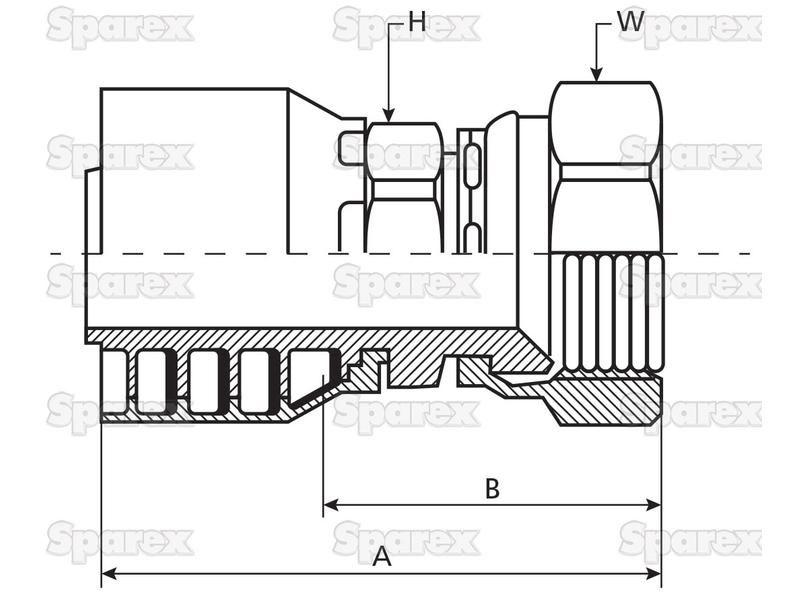

Parker JIC 37° Hose Insert 5/16'' x 9/16'' x 18'' Female Straight Swivel A (mm) 65B (mm) 32H1 (mm) 15H2 (mm)
Technical Information
| A mm | 65 |
| B mm | 32 |
| Brand | Parker |
| Cone angle | 37° |
| Fitting | 1 Piece Fitting |
| H mm | 17 |
| Hose inner Ø ins | 5/16 |
| Hose inner Ø mm | 7.9 |
| Male Female | Female |
| Nominal I.D. | DN08 |
| Position | Straight Swivel |
| Reference | 10648-6-5 |
| Series | 48 |
| Tariff Code | 7307199000 |
| Thread size | 9/16'' x 18 |
| Thread type | JIC |
| Type | JIC Female |
| W mm | 19 |
