Parker JIC 37° Hose Insert 5/16'' x 3/4'' x 16'' Female Straight Swivel PARKER HANNIFIN (16848-8-5)
Part Number: S.3221205Categories: Hydraulics
Part Number: S.3221205
Grade: Replacement
Part Details

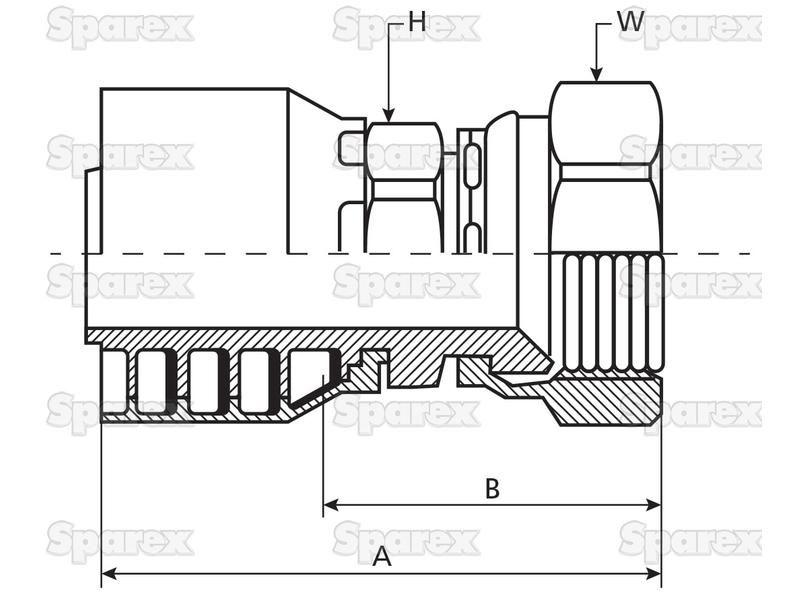

Parker JIC 37° Hose Insert 5/16'' x 3/4'' x 16'' Female Straight Swivel A (mm) 57B (mm) 34H1 (mm) 15H2 (mm)
Technical Information
| A mm | 57 |
| B mm | 34 |
| Brand | Parker |
| Cone angle | 37° |
| Fitting | 1 Piece Fitting |
| H mm | 17 |
| Hose inner Ø ins | 5/16 |
| Hose inner Ø mm | 7.9 |
| Male Female | Female |
| Nominal I.D. | DN08 |
| Position | Straight Swivel |
| Reference | 16848-8-5 |
| Series | 48 |
| Tariff Code | 7307199000 |
| Thread size | 3/4'' x 16 |
| Thread type | JIC |
| W mm | 22 |
Manufacturer Part Numbers
| PARKER HANNIFIN |
|---|
| 16848-8-5 |
