Parker JIC 37° Hose Insert 3/8'' x 9/16'' x 18'' Female Straight Swivel PARKER HANNIFIN (10648-6-6)
Part Number: S.3220906Categories: Hydraulics
Part Number: S.3220906
Grade: Replacement
Part Details

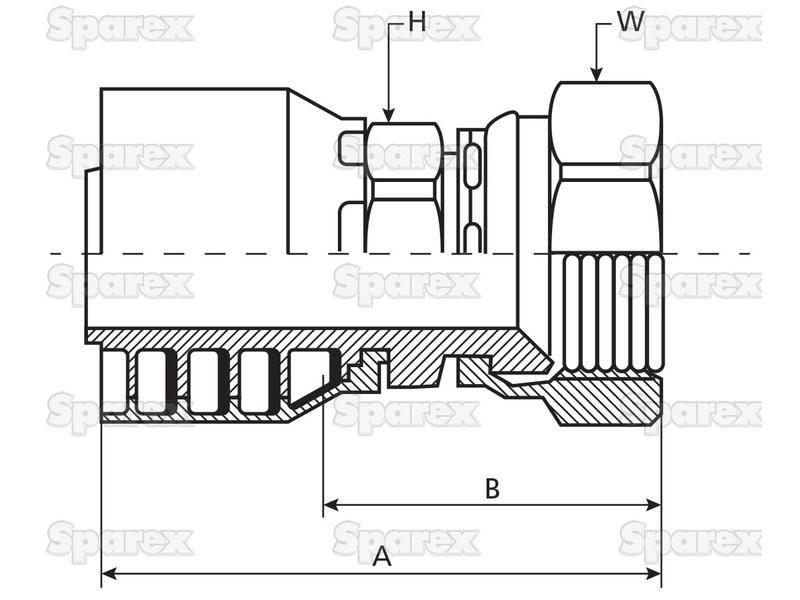

Parker JIC 37° Hose Insert 3/8'' x 9/16'' x 18'' Female Straight Swivel A 52B 30H1 15H2
Technical Information
| A mm | 52 |
| B mm | 30 |
| Brand | Parker |
| Cone angle | 37° |
| Fitting | 1 Piece Fitting |
| H mm | 17 |
| Hose inner Ø ins | 3/8 |
| Hose inner Ø mm | 9.5 |
| Male Female | Female |
| Nominal I.D. | DN10 |
| Position | Straight Swivel |
| Reference | 10648-6-6 |
| Series | 48 |
| Tariff Code | 7307199000 |
| Thread size | 9/16'' x 18 |
| Thread type | JIC |
| Type | JIC Female |
| W mm | 19 |
Manufacturer Part Numbers
| PARKER HANNIFIN |
|---|
| 10648-6-6 |
