Parker JIC 37° Hose Insert 3/8'' x 7/16'' x 20'' Female Straight Swivel PARKER HANNIFIN (16848-10-6)
Part Number: S.3221406Categories: Hydraulics
Part Number: S.3221406
Grade: Replacement
Part Details

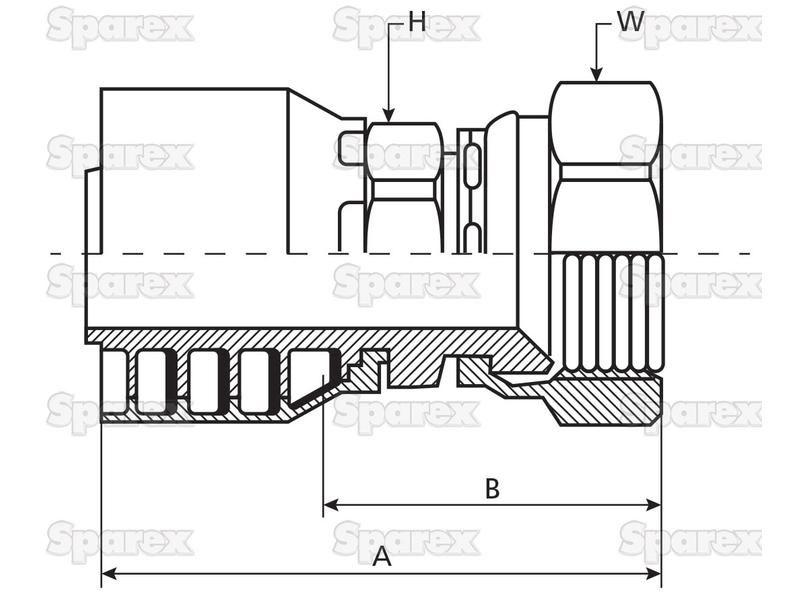

Parker JIC 37° Hose Insert 3/8'' x 7/16'' x 20'' Female Straight Swivel A (mm) 59B (mm) 36H1 (mm) 15H2 (mm)
Technical Information
| A mm | 59 |
| B mm | 36 |
| Brand | Parker |
| Cone angle | 37° |
| Fitting | 1 Piece Fitting |
| H mm | 22 |
| Hose inner Ø ins | 3/8 |
| Hose inner Ø mm | 9.5 |
| Male Female | Female |
| Nominal I.D. | DN10 |
| Position | Straight Swivel |
| Reference | 16848-10-6 |
| Series | 48 |
| Tariff Code | 7307199000 |
| Thread size | 7/16'' x 20 |
| Thread type | JIC |
| W mm | 27 |
Manufacturer Part Numbers
| PARKER HANNIFIN |
|---|
| 16848-10-6 |
