Parker JIC 37° Hose Insert 1/4'' x 1/2'' x 14'' Female Straight Swivel PARKER HANNIFIN (16848-5-4)
Part Number: S.3220804Categories: Hydraulics
Part Number: S.3220804
Grade: Replacement
Part Details

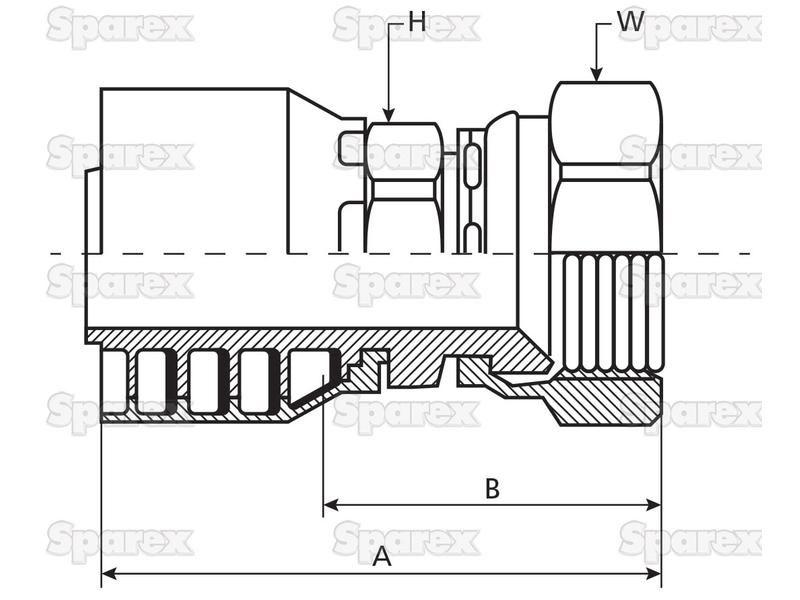

Parker JIC 37° Hose Insert 1/4'' x 1/2'' x 14'' Female Straight Swivel A (mm) 54B (mm) 30H1 (mm) 15H2 (mm)
Technical Information
| A mm | 54 |
| B mm | 30 |
| Brand | Parker |
| Cone angle | 37° |
| Fitting | 1 Piece Fitting |
| H mm | 14 |
| Hose inner Ø ins | 1/4 |
| Hose inner Ø mm | 6.3 |
| Male Female | Female |
| Nominal I.D. | DN12 |
| Position | Straight Swivel |
| Reference | 16848-5-4 |
| Series | 48 |
| Tariff Code | 7307199000 |
| Thread size | 1/2'' x 14 |
| Thread type | JIC |
| Type | JIC Female |
| W mm | 17 |
Manufacturer Part Numbers
| PARKER HANNIFIN |
|---|
| 16848-5-4 |
