Parker JIC 37° Hose Insert 1/2'' x 1 1/16'' x 12'' Female Straight Swivel PARKER HANNIFIN (10648-12-8)
Part Number: S.3221708Categories: Hydraulics
Part Number: S.3221708
Grade: Replacement
Part Details

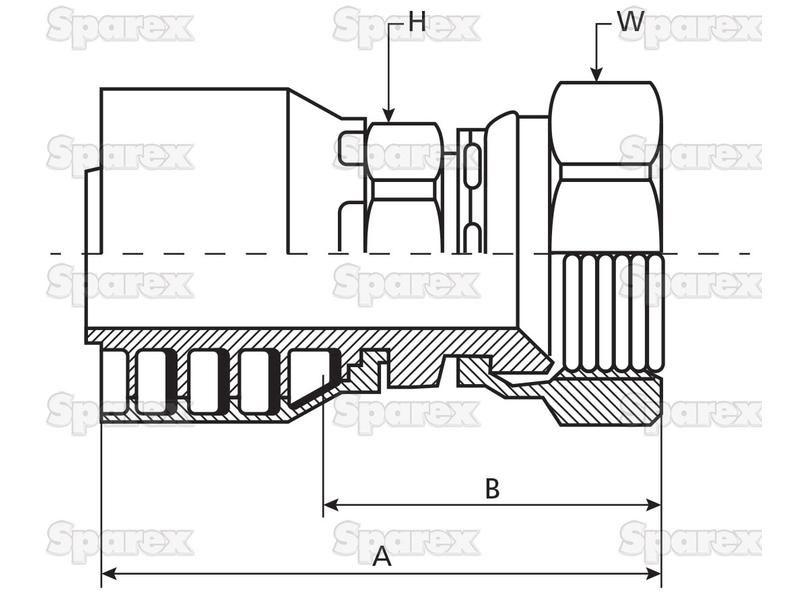

Parker JIC 37° Hose Insert 1/2'' x 1 1/16'' x 12'' Female Straight Swivel A (mm) 48B (mm) 24H1 (mm) 15H2 (mm)
Technical Information
| A mm | 48 |
| B mm | 24 |
| Brand | Parker |
| Cone angle | 37° |
| Fitting | 1 Piece Fitting |
| H mm | 27 |
| Hose inner Ø ins | 1/2 |
| Hose inner Ø mm | 12.7 |
| Male Female | Female |
| Nominal I.D. | DN12 |
| Position | Straight Swivel |
| Reference | 10648-12-8 |
| Series | 48 |
| Tariff Code | 7307199000 |
| Thread size | 1 1/16'' x 12 |
| Thread type | JIC |
| Type | JIC Female |
| W mm | 32 |
Manufacturer Part Numbers
| PARKER HANNIFIN |
|---|
| 10648-12-8 |
