Parker JIC 37° Hose Insert 1'' x 1 5/16'' x 12'' Male Straight PARKER HANNIFIN (10348-16-16)
Part Number: S.3212116Categories: Hydraulics
Part Number: S.3212116
Grade: Replacement
Part Details

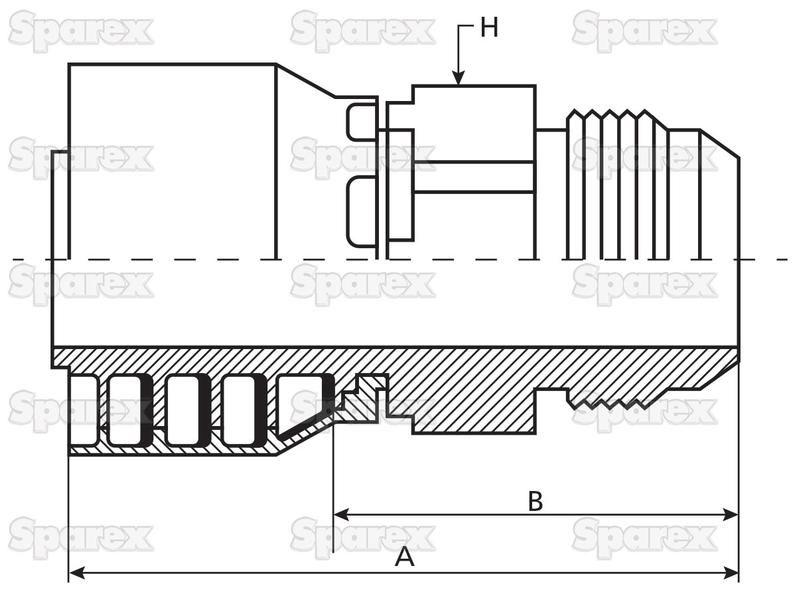

Parker JIC 37° Hose Insert 1'' x 1 5/16'' x 12'' Male Straight A (mm) 76B (mm) 46H (mm) 36
Technical Information
| A mm | 76 |
| B mm | 46 |
| Brand | Parker |
| Cone angle | 37° |
| Fitting | 1 Piece Fitting |
| H mm | 36 |
| Hose inner Ø ins | 1 |
| Hose inner Ø mm | 25.4 |
| Male Female | Male |
| Nominal I.D. | DN25 |
| Position | Straight |
| Reference | 10348-16-16 |
| Series | 48 |
| Tariff Code | 7307199000 |
| Thread size | 1 5/16'' x 12 |
| Thread type | JIC |
| Type | JIC Male |
Manufacturer Part Numbers
| PARKER HANNIFIN |
|---|
| 10348-16-16 |
