Parker JIC 37° Hose Insert 1'' x 1 5/16'' x 12'' Female Straight Swivel PARKER HANNIFIN (10648-16-16)
Part Number: S.3222116Categories: Hydraulics
Part Number: S.3222116
Grade: Replacement
Part Details

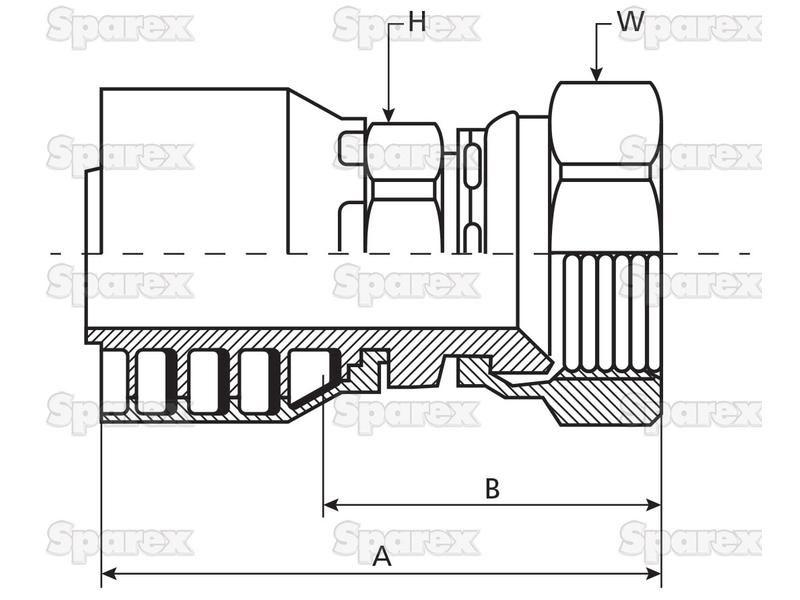

Parker JIC 37° Hose Insert 1'' x 1 5/16'' x 12'' Female Straight Swivel A (mm) 76B (mm) 46H1 (mm) 15H2 (mm)
Technical Information
| A mm | 76 |
| B mm | 46 |
| Brand | Parker |
| Cone angle | 37° |
| Fitting | 1 Piece Fitting |
| H mm | 32 |
| Hose inner Ø ins | 1 |
| Hose inner Ø mm | 25.4 |
| Male Female | Female |
| Nominal I.D. | DN25 |
| Position | Straight Swivel |
| Reference | 10648-16-16 |
| Series | 48 |
| Tariff Code | 7307199000 |
| Thread size | 1 5/16'' x 12 |
| Thread type | JIC |
| Type | JIC Female |
| W mm | 41 |
Manufacturer Part Numbers
| PARKER HANNIFIN |
|---|
| 10648-16-16 |
