Parker JIC 37° Hose Insert 1'' x 1 5/16'' x 12'' Female 135° Swept Swivel PARKER HANNIFIN (13748-16-16)
Part Number: S.3242116Categories: Hydraulics
Part Number: S.3242116
Grade: Replacement
Part Details

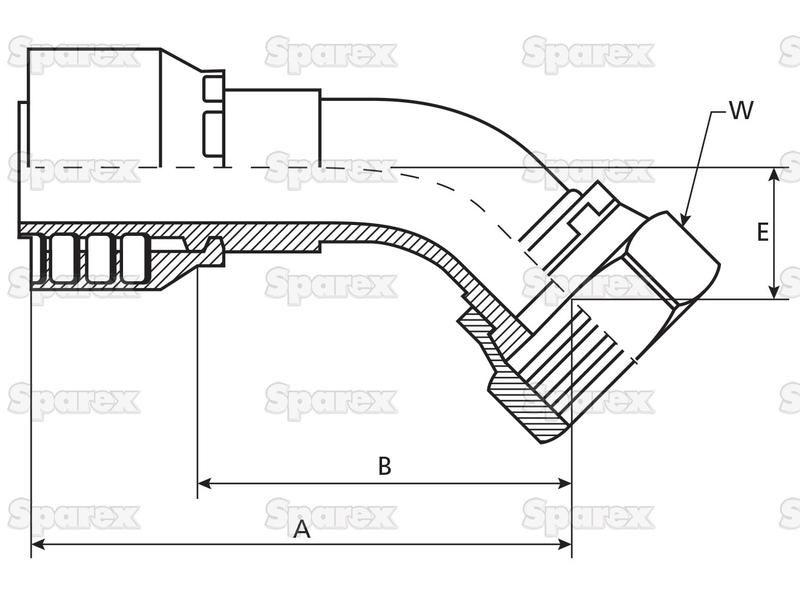

Parker JIC 37° Hose Insert 1'' x 1 5/16'' x 12'' Female 135° Swept Swivel A (mm) 97B (mm) 68E (mm) 24H (mm)
Technical Information
| A mm | 97 |
| B mm | 68 |
| Brand | Parker |
| Cone angle | 37° |
| E mm | 24 |
| Fitting | 1 Piece Fitting |
| Hose inner Ø ins | 1 |
| Hose inner Ø mm | 25.4 |
| Male Female | Female |
| Nominal I.D. | DN25 |
| Position | 135° Swept Swivel |
| Reference | 13748-16-16 |
| Series | 48 |
| Tariff Code | 7307199000 |
| Thread size | 1 5/16'' x 12 |
| Thread type | JIC |
| Type | JIC 135° Swept Female |
| W mm | 41 |
Manufacturer Part Numbers
| PARKER HANNIFIN |
|---|
| 13748-16-16 |
