Parker BSP Hose Insert 3/8'' x 3/8'' x 19'' Female 90° Compact Swivel PARKER HANNIFIN (1B448-6-6)
Part Number: S.3170606Categories: Hydraulics
Part Number: S.3170606
Grade: Replacement
Part Details

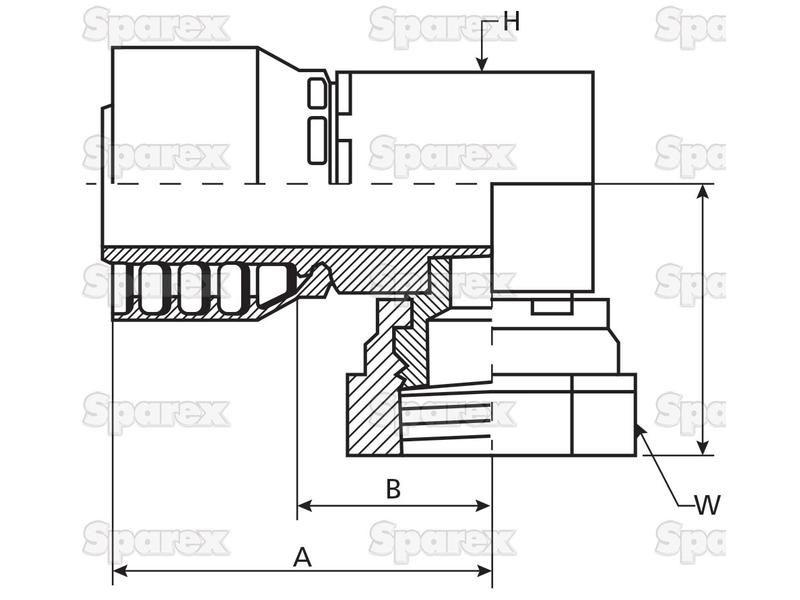

Parker BSP Hose Insert 3/8'' x 3/8'' x 19'' Female 90° Compact Swivel A (mm) 68B (mm) 45E (mm) 23H (mm) 19
Technical Information
| A mm | 68 |
| B mm | 45 |
| Brand | Parker |
| E mm | 23 |
| Fitting | 1 Piece Fitting |
| H mm | 19 |
| Hose inner Ø ins | 3/8 |
| Hose inner Ø mm | 9.5 |
| Male Female | Female |
| Nominal I.D. | DN10 |
| Position | 90° Compact Swivel |
| Reference | 1B448-6-6 |
| Series | 48 |
| Tariff Code | 7307199000 |
| Thread size | 3/8'' x 19 |
| Thread type | BSP |
| Type | 90° Compact Female |
| W mm | 22 |
Manufacturer Part Numbers
| PARKER HANNIFIN |
|---|
| 1B448-6-6 |
