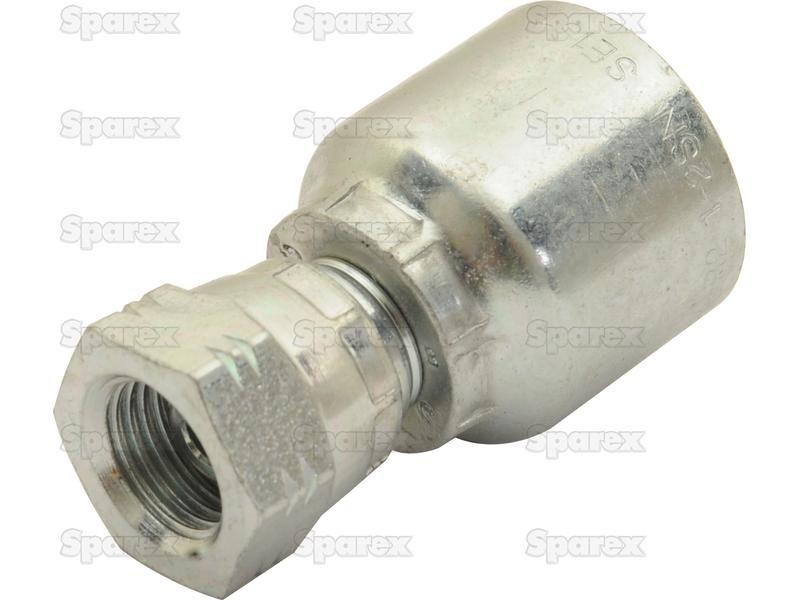

Parker BSP Hose Insert 3/8'' x 1/4'' x 19'' Female Straight Swivel PARKER HANNIFIN (19248-4-6)
Part Number: S.3120406Categories: Hydraulics
Part Number: S.3120406
Grade: Replacement
Part Details

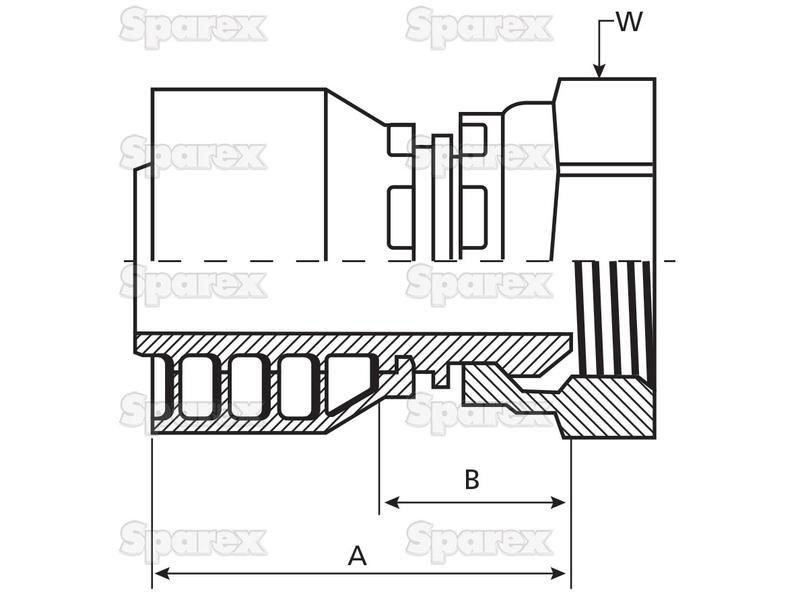

Parker BSP Hose Insert 3/8'' x 1/4'' x 19'' Female Straight Swivel A (mm) 43B (mm) 20H (mm)
Technical Information
| A mm | 43 |
| B mm | 20 |
| Brand | Parker |
| Fitting | 1 Piece Fitting |
| Hose inner Ø ins | 3/8 |
| Hose inner Ø mm | 9.5 |
| Male Female | Female |
| Nominal I.D. | DN10 |
| Position | Straight Swivel |
| Reference | 19248-4-6 |
| Series | 48 |
| Tariff Code | 7307199000 |
| Thread size | 1/4'' x 19 |
| Thread type | BSP |
| W mm | 19 |
Manufacturer Part Numbers
| PARKER HANNIFIN |
|---|
| 19248-4-6 |
