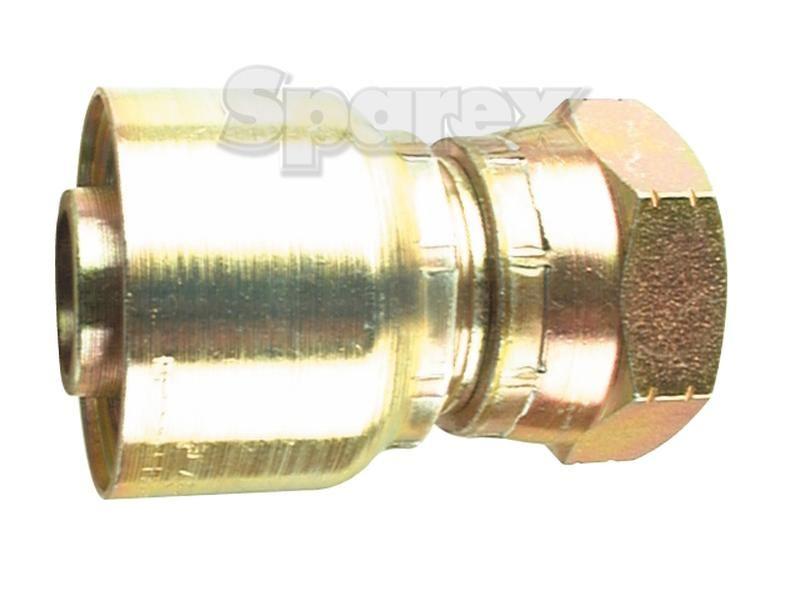

Parker BSP Hose Insert 3/8'' x 1/2'' x 14'' Female Straight Swivel
Part Number: S.3120806Categories: Hydraulics
Part Number: S.3120806
Grade: Replacement
Part Details

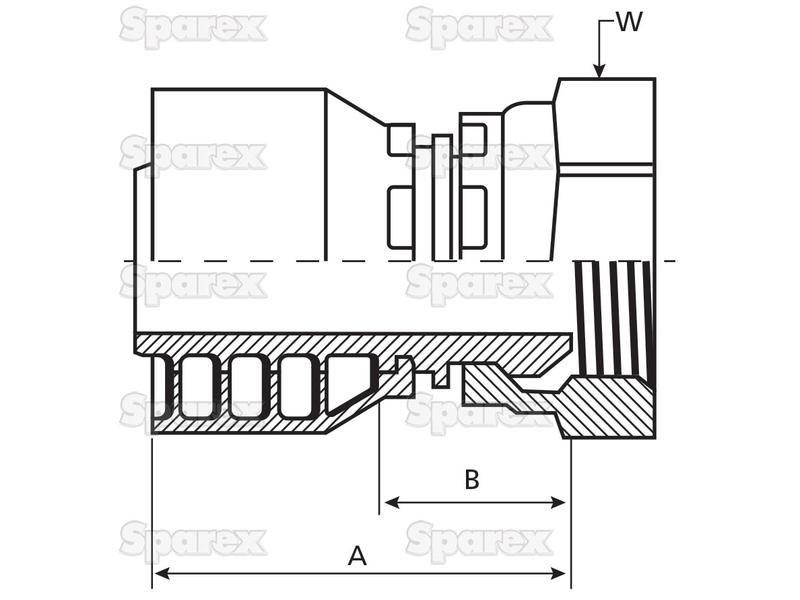

Parker BSP Hose Insert 3/8'' x 1/2'' x 14'' Female Straight Swivel A (mm) 45B (mm) 22H (mm)
Technical Information
| A mm | 45 |
| B mm | 22 |
| Brand | Parker |
| Fitting | 1 Piece Fitting |
| Hose inner Ø ins | 3/8 |
| Hose inner Ø mm | 9.5 |
| Male Female | Female |
| Nominal I.D. | DN10 |
| Position | Straight Swivel |
| Reference | 19248-8-6 |
| Series | 48 |
| Tariff Code | 7307199000 |
| Thread size | 1/2'' x 14 |
| Thread type | BSP |
| Type | Female |
| W mm | 27 |
