Parker BSP Hose Insert 1/4'' x 1/4'' x 19'' Female 90° Compact Swivel PARKER HANNIFIN (1B448-4-4)
Part Number: S.3170404Categories: Hydraulics
Part Number: S.3170404
Grade: Replacement
Part Details

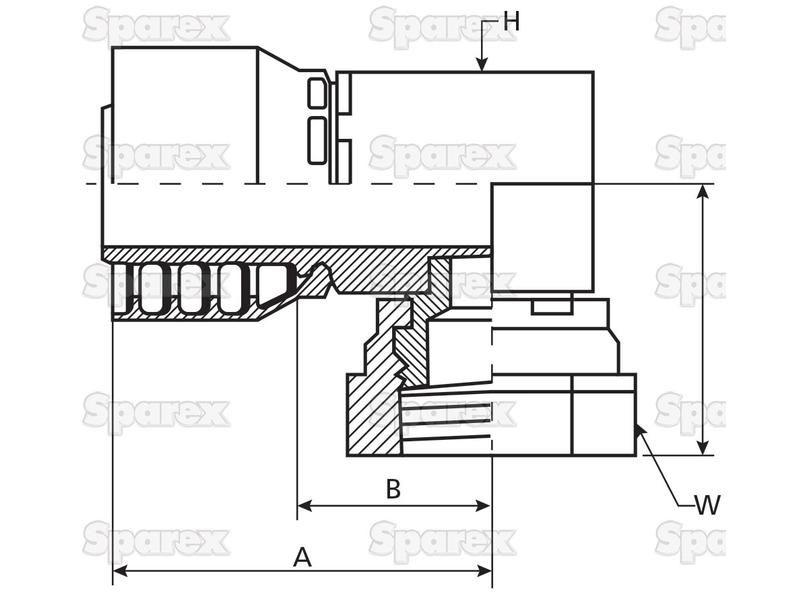

Parker BSP Hose Insert 1/4'' x 1/4'' x 19'' Female 90° Compact Swivel A (mm) 58B (mm) 34E (mm) 22H (mm) 17
Technical Information
| A mm | 58 |
| B mm | 34 |
| Brand | Parker |
| E mm | 22 |
| Fitting | 1 Piece Fitting |
| H mm | 17 |
| Hose inner Ø ins | 1/4 |
| Hose inner Ø mm | 6.3 |
| Male Female | Female |
| Nominal I.D. | DN06 |
| Position | 90° Compact Swivel |
| Reference | 1B448-4-4 |
| Series | 48 |
| Tariff Code | 7307199000 |
| Thread size | 1/4'' x 19 |
| Thread type | BSP |
| Type | 90° Compact Female |
| W mm | 19 |
Manufacturer Part Numbers
| PARKER HANNIFIN |
|---|
| 1B448-4-4 |
