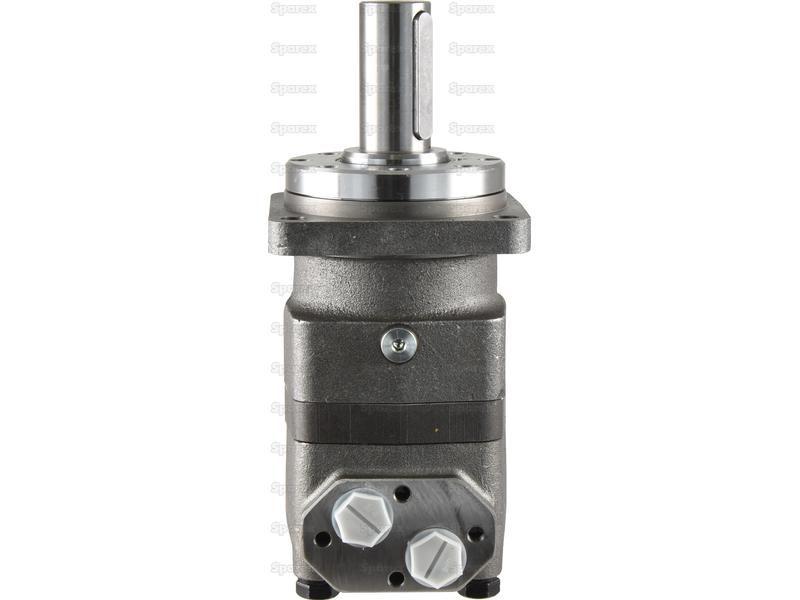

Orbital Hydraulic Motor Danfoss (OMT250)
Part Number: S.137228Categories: Hydraulics
Part Number: S.137228
Grade: Replacement
Part Details
Orbital Hydraulic Motor Motor Type: MOMTDisplacement cm°³: 250Flow Rate: 125L/min
Technical Information
| Brand | Trale |
| Displacement cm³ | 250 |
| Drain Port Thread | 1/4" |

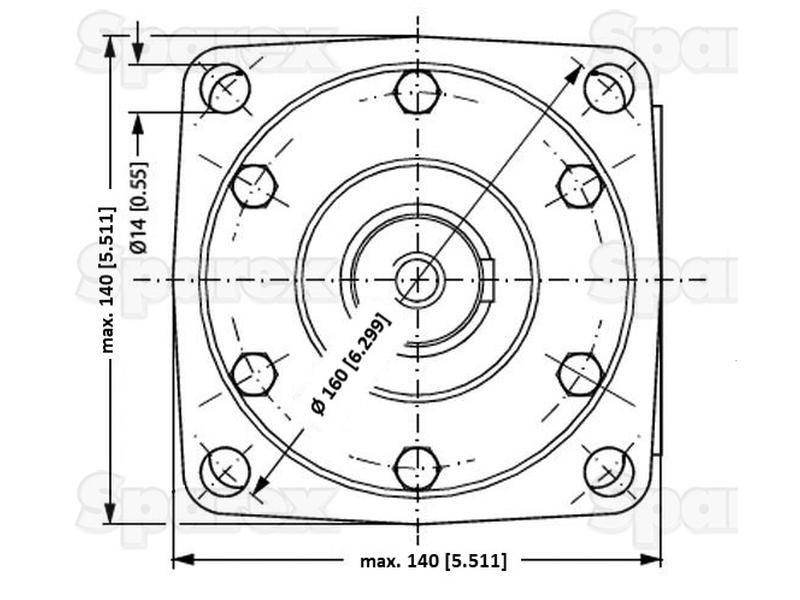

| Flange Type | Standard Square Flange - 4 Hole |
| Hydraulic Motor Type | MOMT |

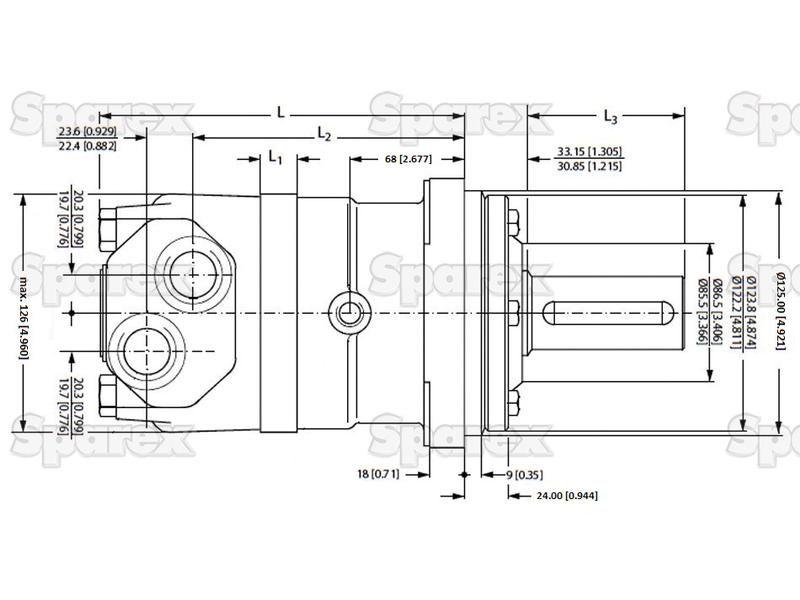

| L mm | 211 |
| L1 mm | 22 |
| L2 mm | 160 |
| L3 mm | 82 |
| Main Port Thread Size | 3/4'' |
| Maximum Continuous KW Power | 33.5 |
| Maximum Continuous Torque Nm | 73 |
| Maximum Continuous Working Pressure Bar | 200 |
| Maximum Flow Rate LPM | 125 |
| Maximum Peak Torque Nm | 102 |
| Maximum Peak Working Pressure Bar | 280 |
| Maximum RPM | 495 |
| Model | OMT250 |
| Related Products | 153119 |
| Seal Kit and Repair Kits | S.153119 |

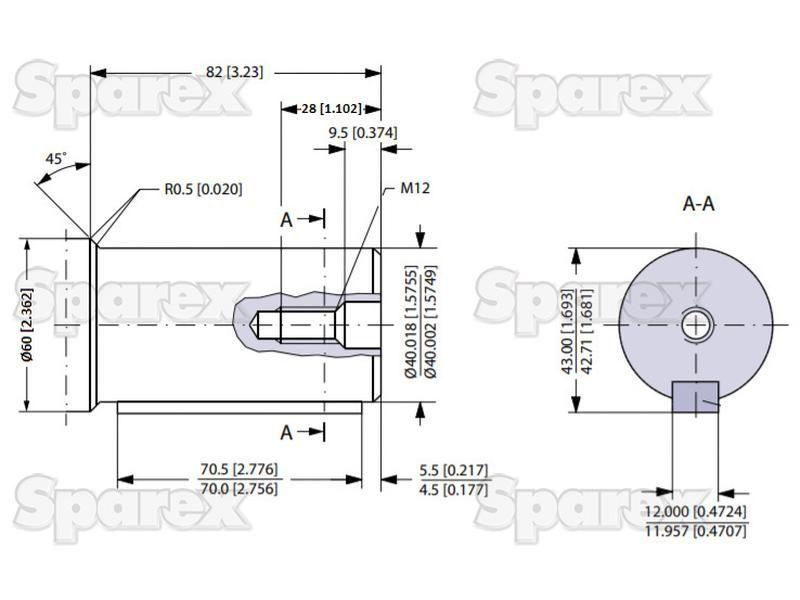

| Shaft Ø mm | 40 |
| Shaft type | Straight / Parallel |
| Tariff Code | 8708999790 |
| Thread type | BSP |
Manufacturer Part Numbers
| Danfoss |
|---|
| OMT250 |
