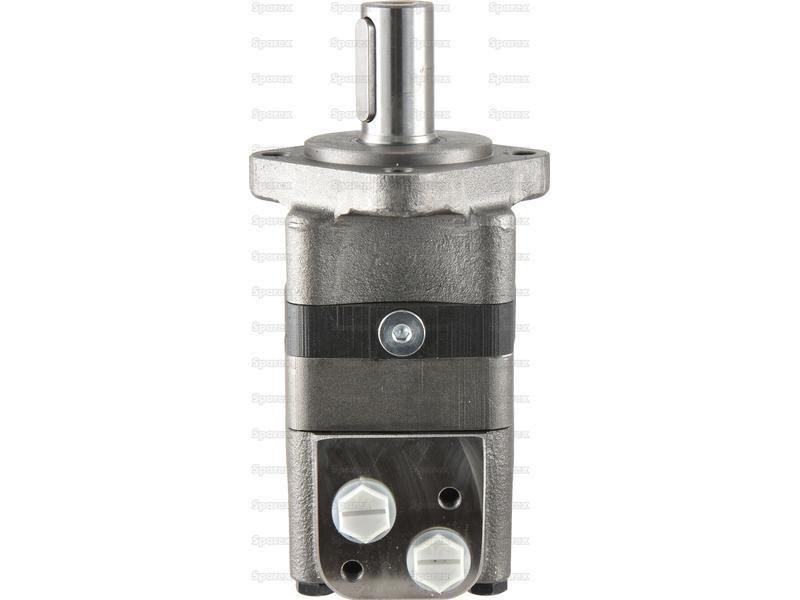

Orbital Hydraulic Motor Danfoss (OMS200)
Part Number: S.137232Categories: Hydraulics
Part Number: S.137232
Grade: Replacement
Part Details
Orbital Hydraulic Motor Motor Type: MOMSDisplacement cm°³: 200Flow Rate: 75L/min
Technical Information
| Brand | Trale |
| Displacement cm³ | 200 |
| Drain Port Thread | 1/4" |

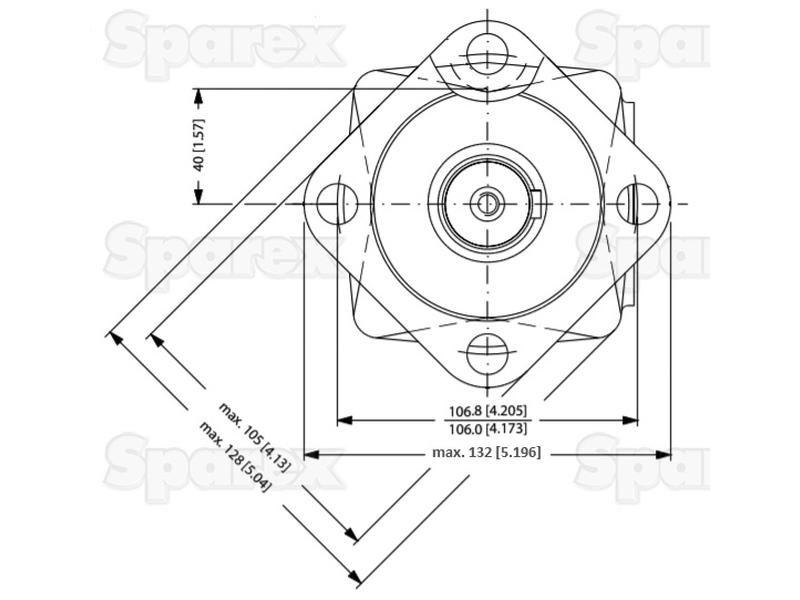

| Flange Type | Standard Square Flange - 4 Hole |
| Hydraulic Motor Type | MOMS |

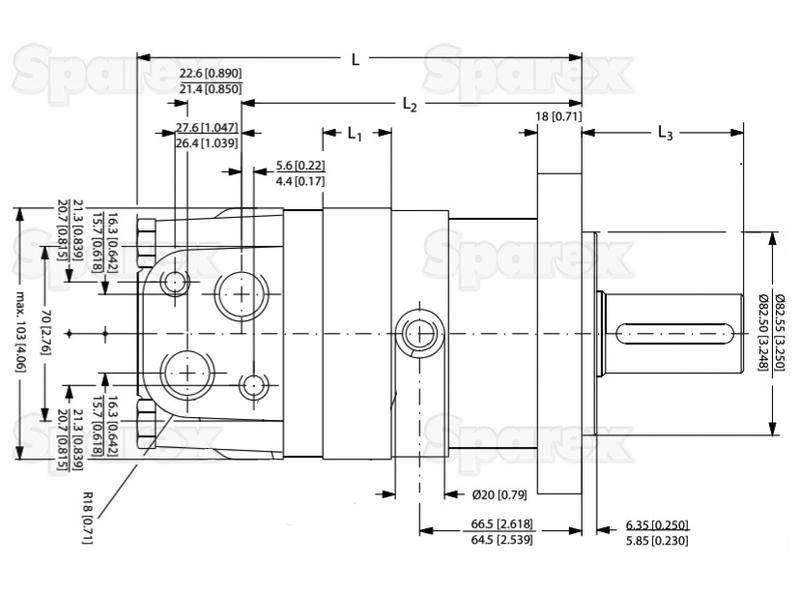

| L mm | 188 |
| L1 mm | 32 |
| L2 mm | 145 |
| L3 mm | 66.5 |
| Main Port Thread Size | 1/2'' |
| Maximum Continuous KW Power | 14 |
| Maximum Continuous Torque Nm | 39.5 |
| Maximum Continuous Working Pressure Bar | 150 |
| Maximum Flow Rate LPM | 75 |
| Maximum Peak Torque Nm | 64.8 |
| Maximum Peak Working Pressure Bar | 225 |
| Maximum RPM | 373 |
| Model | OMS200 |
| Related Products | 153129 |
| Seal Kit and Repair Kits | S.153129 |

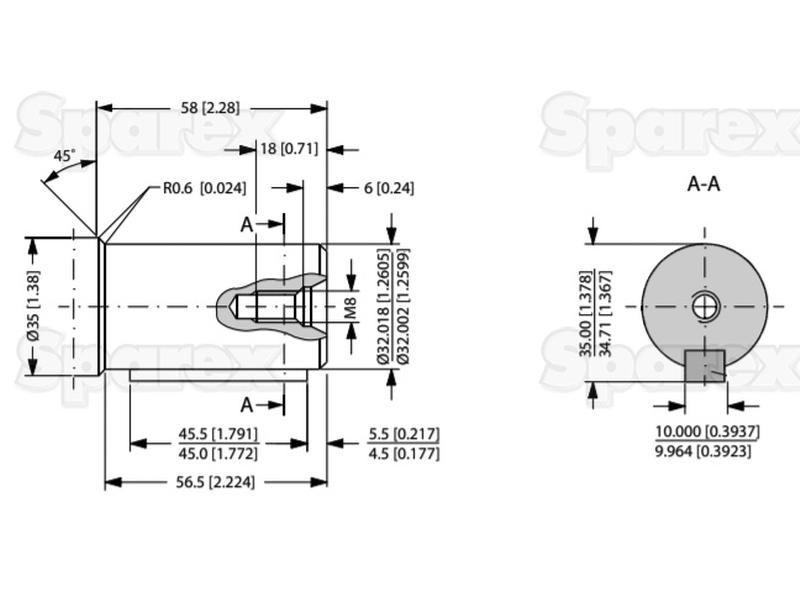

| Shaft Ø mm | 32 |
| Shaft type | Straight / Parallel |
| Tariff Code | 8708999790 |
| Thread type | BSP |
Manufacturer Part Numbers
| Danfoss |
|---|
| OMS200 |
