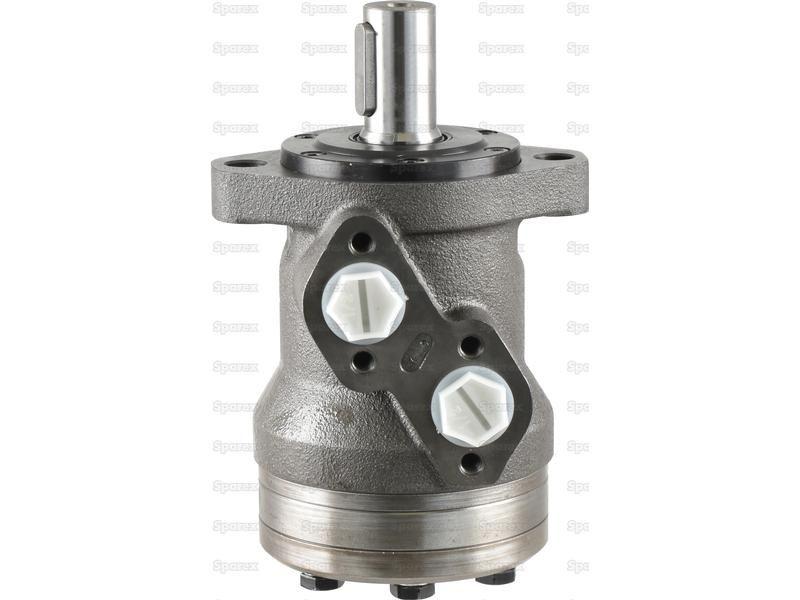

Orbital Hydraulic Motor Danfoss (OMR200)
Part Number: S.137216Categories: Hydraulics
Part Number: S.137216
Grade: Replacement
Part Details
Orbital Hydraulic Motor Motor Type: MOMRDisplacement cm°³: 200Flow Rate: 60L/min
Technical Information
| Brand | Trale |
| Displacement cm³ | 200 |
| Drain Port Thread | 1/4" |
| Flange Type | SAE A2 Oval Flange - 2 Hole |
| Hydraulic Motor Type | MOMR |

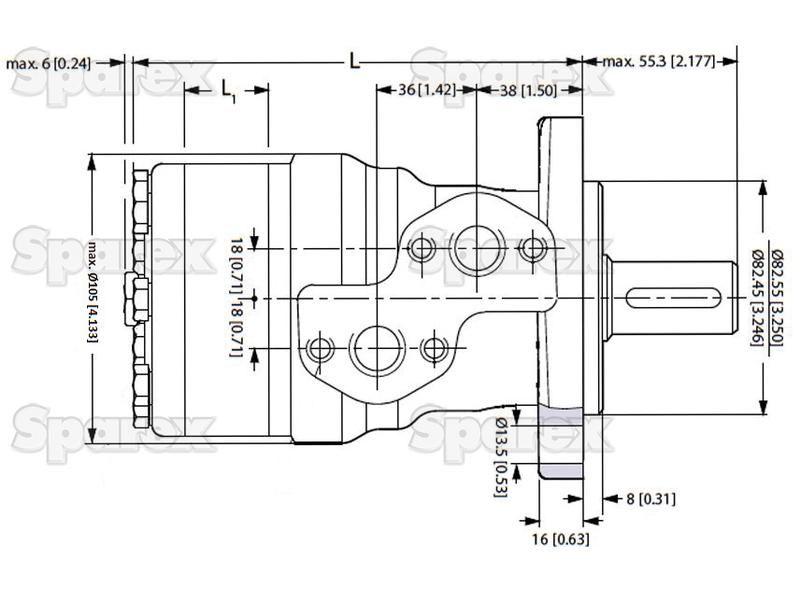

| L mm | 165 |
| L1 mm | 35 |
| Main Port Thread Size | 1/2'' |
| Maximum Continuous KW Power | 8 |
| Maximum Continuous Torque Nm | 36.9 |
| Maximum Continuous Working Pressure Bar | 140 |
| Maximum Flow Rate LPM | 60 |
| Maximum Peak Torque Nm | 50.9 |
| Maximum Peak Working Pressure Bar | 200 |
| Maximum RPM | 300 |
| Model | OMR200 |
| Related Products | 153128 |
| Seal Kit and Repair Kits | S.153128 |

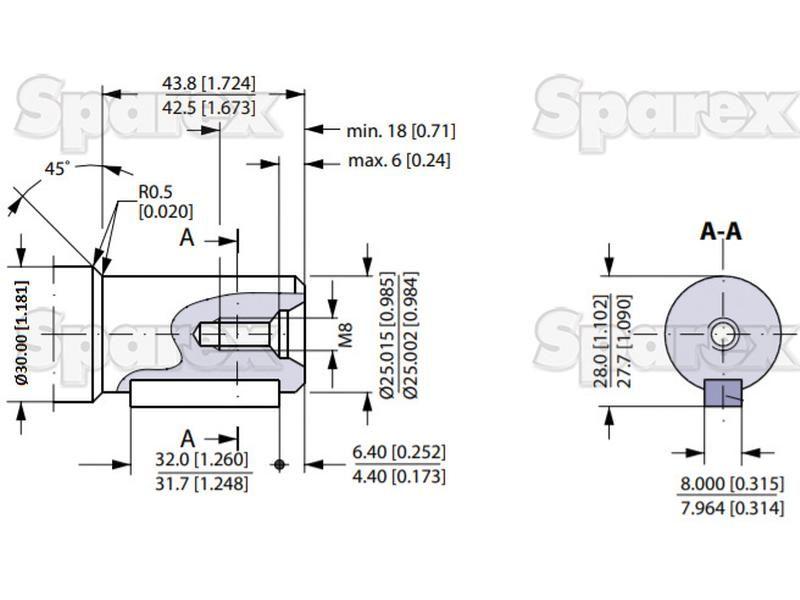

| Shaft Ø mm | 25 |
| Shaft type | Straight / Parallel |
| Tariff Code | 8708999790 |
| Thread type | BSP |
Manufacturer Part Numbers
| Danfoss |
|---|
| OMR200 |
