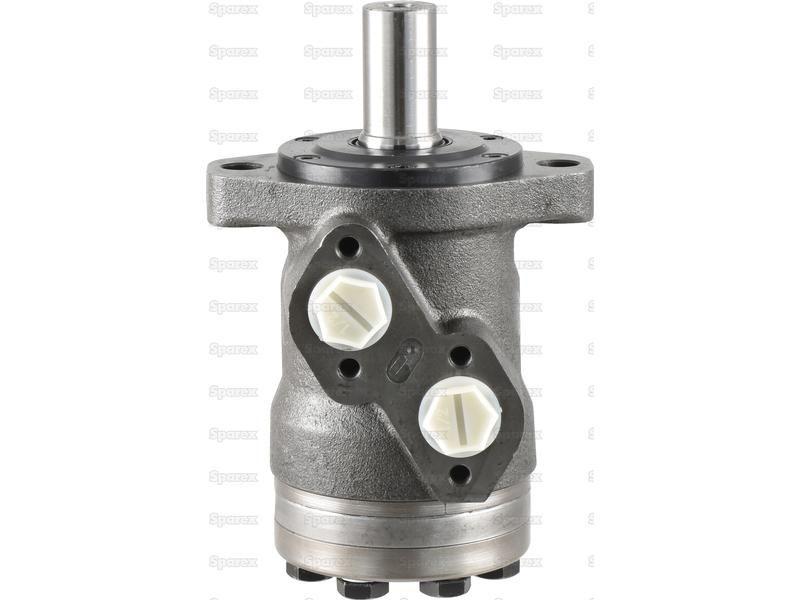

Orbital Hydraulic Motor Danfoss (OMP80)
Part Number: S.137233Categories: Hydraulics
Part Number: S.137233
Grade: Replacement
Part Details
Orbital Hydraulic Motor Motor Type: MOMPDisplacement cm°³: 80Flow Rate: 60L/min

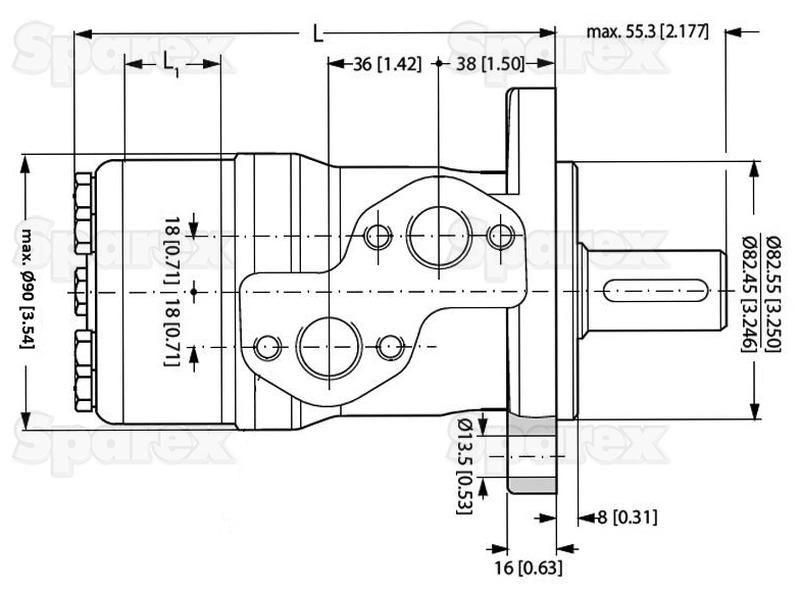

Technical Information
| Brand | Trale |
| Displacement cm³ | 80 |
| Drain Port Thread | 1/4" |

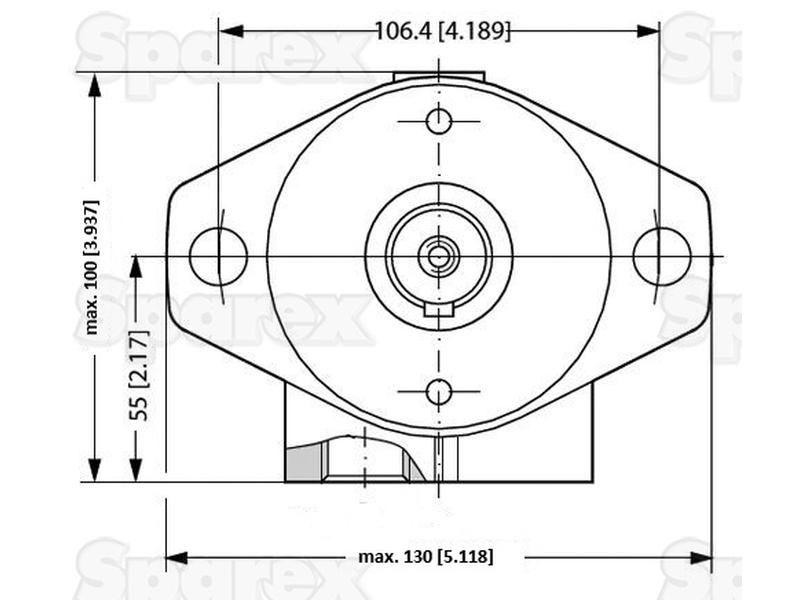

| Flange Type | SAE A2 Oval Flange - 2 Hole |
| Hydraulic Motor Type | MOMP |
| L mm | 145 |
| L1 mm | 11 |
| Main Port Thread Size | 1/2'' |
| Maximum Continuous KW Power | 10.1 |
| Maximum Continuous Torque Nm | 14.9 |
| Maximum Continuous Working Pressure Bar | 140 |
| Maximum Flow Rate LPM | 60 |
| Maximum Peak Torque Nm | 21.9 |
| Maximum Peak Working Pressure Bar | 210 |
| Maximum RPM | 760 |
| Model | OMP80 |
| Related Products | 153127 |
| Seal Kit and Repair Kits | S.153127 |

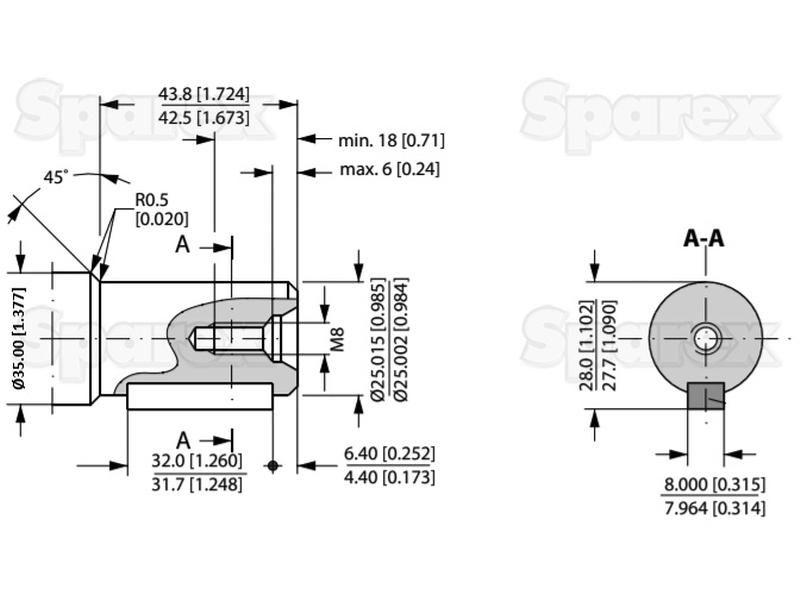

| Shaft Ø mm | 25 |
| Shaft type | Straight / Parallel |
| Tariff Code | 8708999790 |
| Thread type | BSP |
Manufacturer Part Numbers
| Danfoss |
|---|
| OMP80 |
