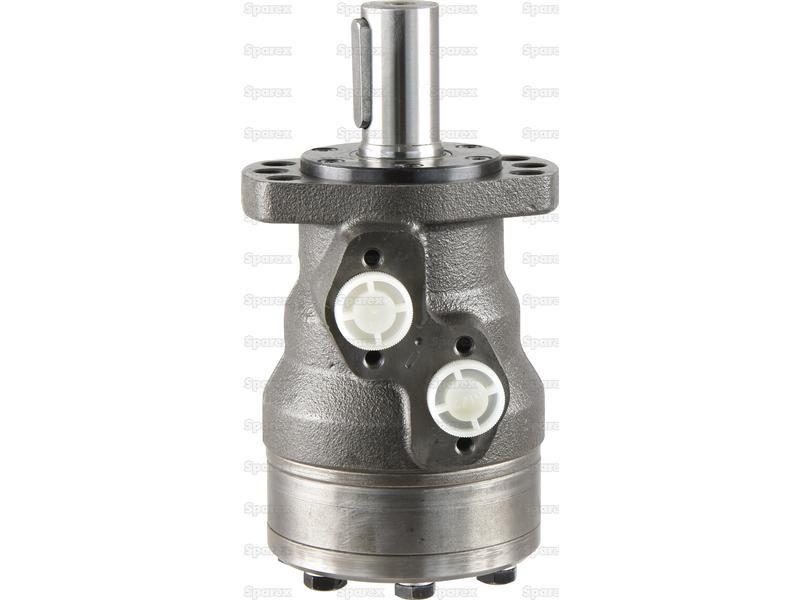

Orbital Hydraulic Motor Danfoss (OMH400)
Part Number: S.137222Categories: Hydraulics
Part Number: S.137222
Grade: Replacement
Part Details
Orbital Hydraulic Motor Motor Type: MOMHDisplacement cm°³: 405.9Flow Rate: 75L/min
Technical Information
| Brand | Trale |
| Displacement cm³ | 405.9 |
| Drain Port Thread | 1/4" |
| Flange Type | SAE A4 Oval Flange - 4 Hole |
| Hydraulic Motor Type | MOMH |
| L mm | 196 |
| L1 mm | 56 |
| Main Port Thread Size | 1/2'' |
| Maximum Continuous KW Power | 11.5 |
| Maximum Continuous Torque Nm | 82.5 |
| Maximum Continuous Working Pressure Bar | 140 |
| Maximum Flow Rate LPM | 75 |
| Maximum Peak Torque Nm | 1055 |
| Maximum Peak Working Pressure Bar | 200 |
| Maximum RPM | 185 |
| Model | OMH400 |
| Related Products | 153126 |
| Seal Kit and Repair Kits | S.153126 |
| Shaft Ø mm | 32 |
| Shaft type | Straight / Parallel |
| Tariff Code | 8708999790 |
| Thread type | BSP |
Manufacturer Part Numbers
| Danfoss |
|---|
| OMH400 |
