Orbital Hydraulic Motor Danfoss (151G0041, OMM8, OMM8151G0041)
Part Number: S.137202Categories: Hydraulics
Part Number: S.137202
Grade: Replacement
Part Details
Orbital Hydraulic Motor Motor Type: OMMDisplacement cm°³: 8.2Flow Rate: 16L/min
Technical Information
| Brand | Danfoss |
| Displacement cm³ | 8.2 |
| Drain Port Thread | 1/8" |
| Flange Type | Direct Mount |
| Hydraulic Motor Type | OMM |

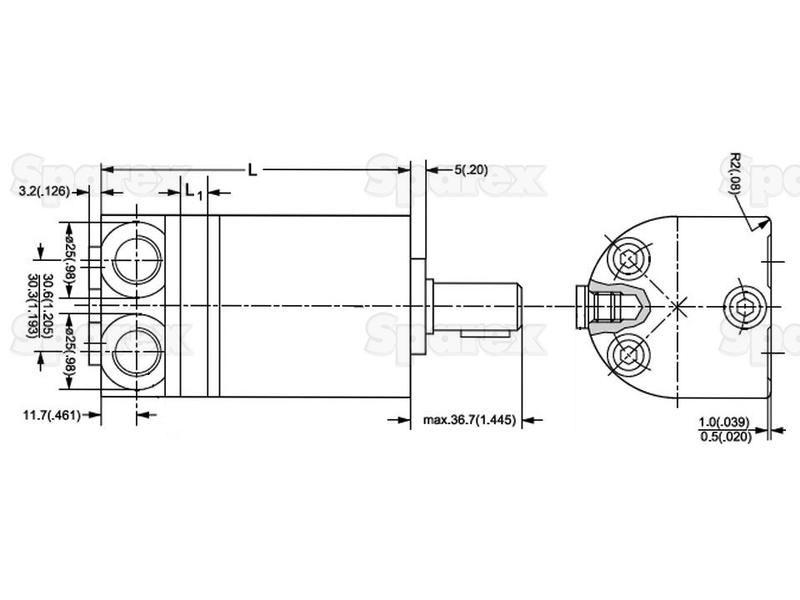

| L mm | 105.8 |
| L1 mm | 3.5 |
| Main Port Thread Size | 3/8" |
| Maximum Continuous KW Power | 1.8 |
| Maximum Continuous Torque Nm | 11 |
| Maximum Continuous Working Pressure Bar | 100 |
| Maximum Flow Rate LPM | 16 |
| Maximum Peak Torque Nm | 21 |
| Maximum Peak Working Pressure Bar | 200 |
| Maximum RPM | 1950 |
| Model | OMM8 |
| Reference | 151G0041 |
| Related Products | 153123 |
| Seal Kit and Repair Kits | S.153118 |

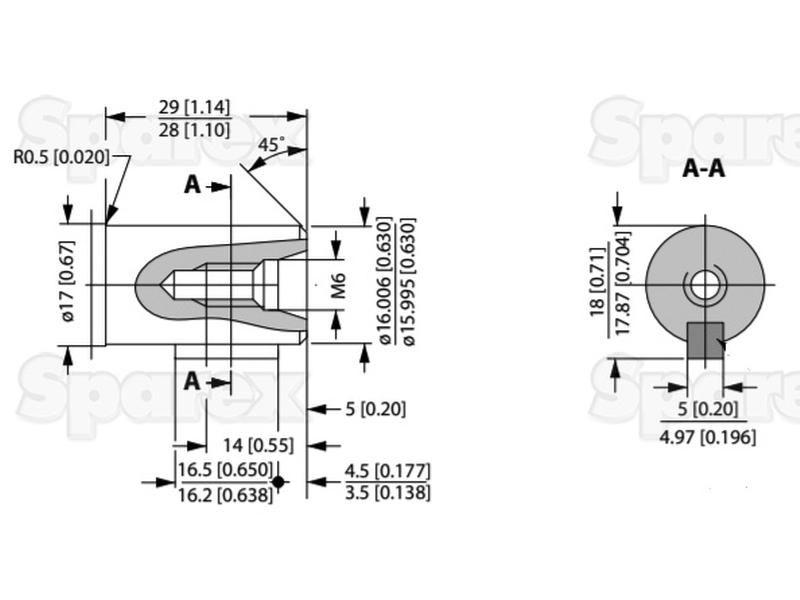

| Shaft Ø mm | 16 |
| Shaft type | Straight / Parallel |
| Tariff Code | 8708999790 |
| Thread type | BSP |
Manufacturer Part Numbers
| Danfoss |
|---|
| 151G0041, OMM8, OMM8151G0041 |
