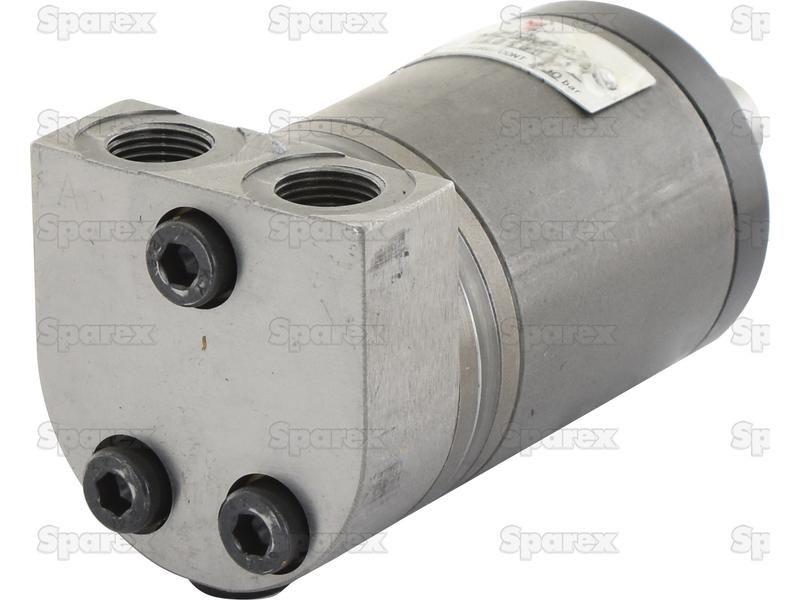

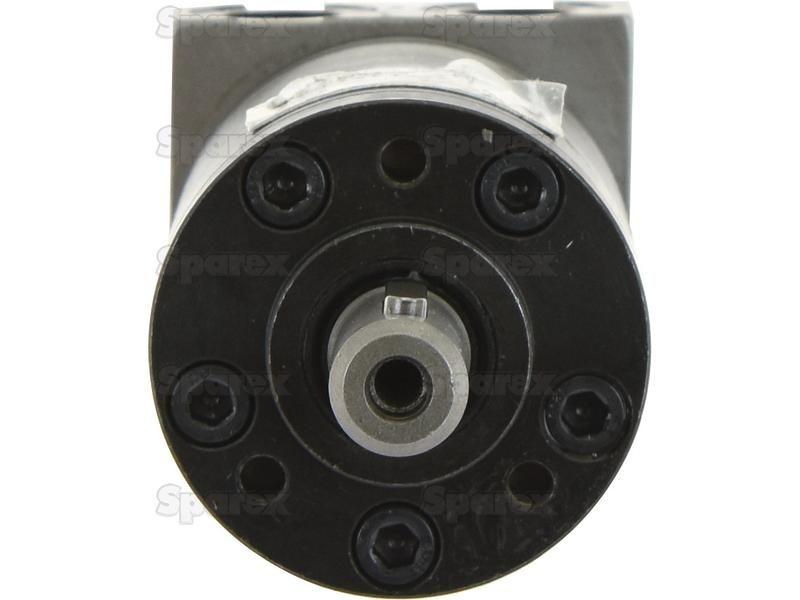

Orbital Hydraulic Motor Danfoss (151G0004, OMM12.5, OMM125151G0004)
Part Number: S.137134Categories: Hydraulics
Part Number: S.137134
Grade: Replacement
Part Details
Orbital Hydraulic Motor Motor Type: MOMMDisplacement cm°³: 12.5Flow Rate: 20L/min
Technical Information
| Brand | Trale |
| Displacement cm³ | 12.5 |
| Drain Port Thread | 1/8" |
| Flange Type | Direct Mount |
| Hydraulic Motor Type | MOMM |

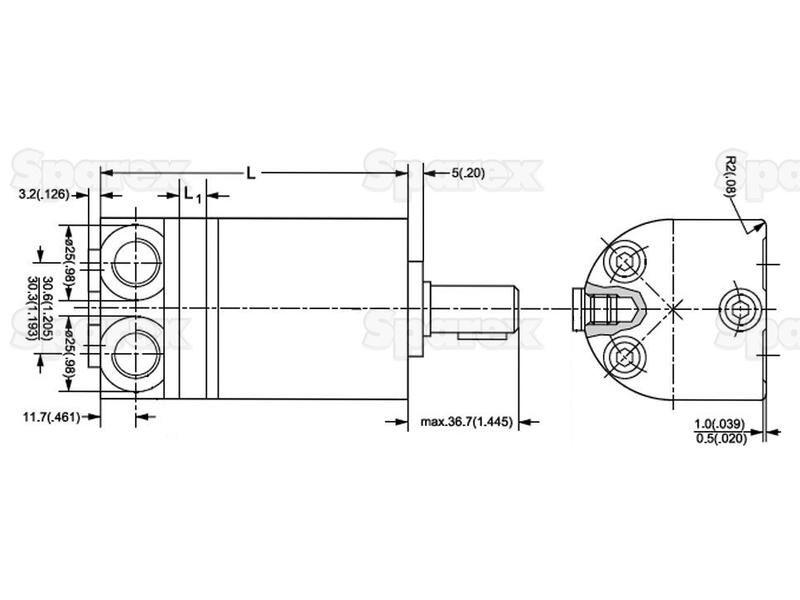

| L mm | 108 |
| L1 mm | 5.5 |
| Main Port Thread Size | 3/8'' |
| Maximum Continuous KW Power | 2.4 |
| Maximum Continuous Torque Nm | 1.6 |
| Maximum Continuous Working Pressure Bar | 100 |
| Maximum Flow Rate LPM | 20 |
| Maximum Peak Torque Nm | 3.3 |
| Maximum Peak Working Pressure Bar | 200 |
| Maximum RPM | 1550 |
| Model | OMM12.5 |
| Related Products | 153118 |
| Seal Kit and Repair Kits | S.153118 |

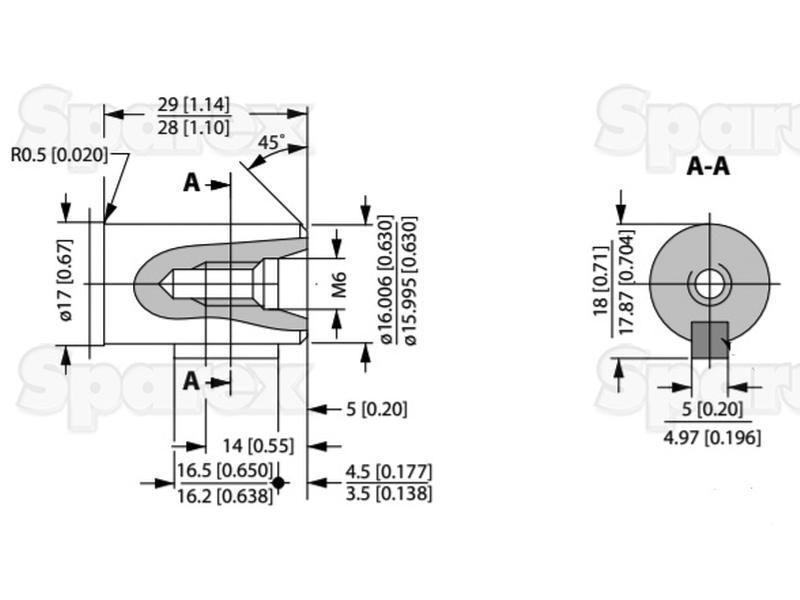

| Shaft Ø mm | 16 |
| Shaft type | Straight / Parallel |
| Tariff Code | 8708999790 |
| Thread type | BSP |
Manufacturer Part Numbers
| Danfoss |
|---|
| 151G0004, OMM12.5, OMM125151G0004 |
