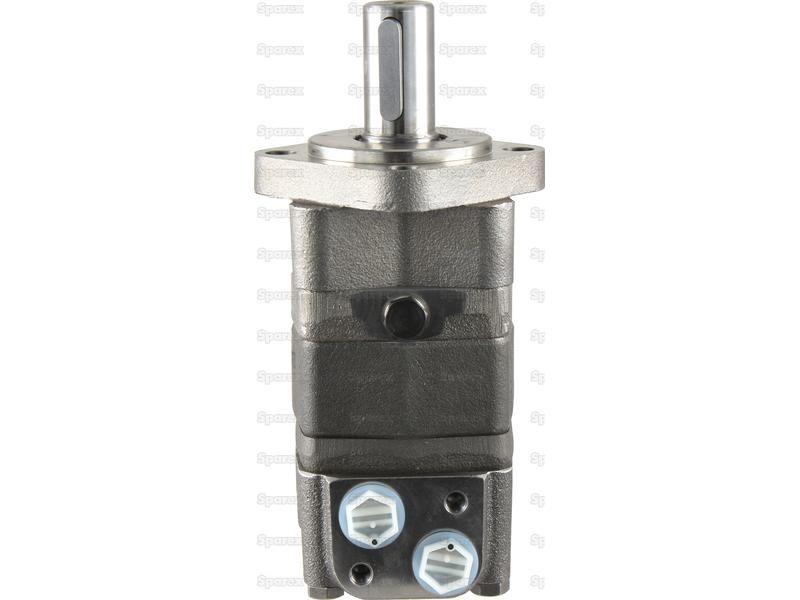

Orbital Hydraulic Motor Danfoss (151F0203, 151F0503, OMS160, OMS160151F0503)
Part Number: S.137170Categories: Hydraulics
Part Number: S.137170
Grade: Replacement
Part Details
Orbital Hydraulic Motor Motor Type: OMSDisplacement cm°³: 159.7Flow Rate: 75L/min
Technical Information
| Brand | Danfoss |
| Displacement cm³ | 159.7 |
| Drain Port Thread | 1/4" |

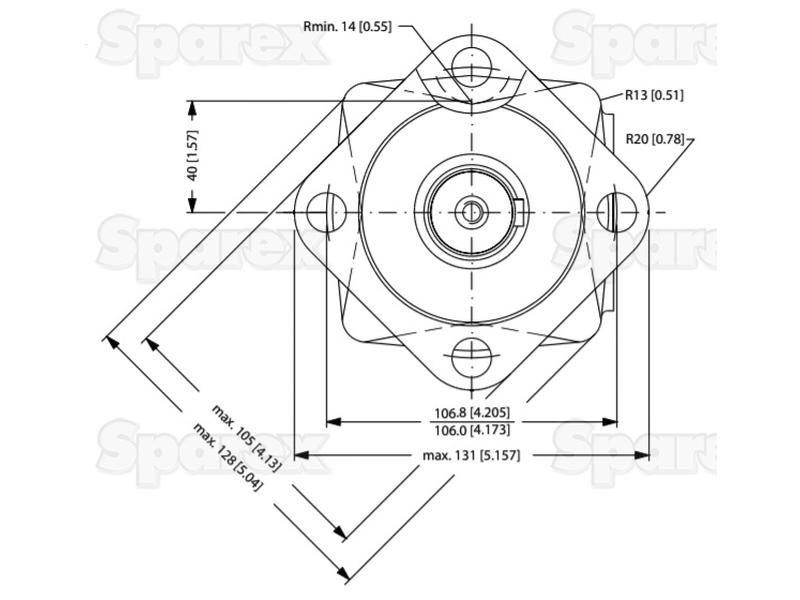

| Flange Type | Standard - 4 Hole |
| Hydraulic Motor Type | OMS |

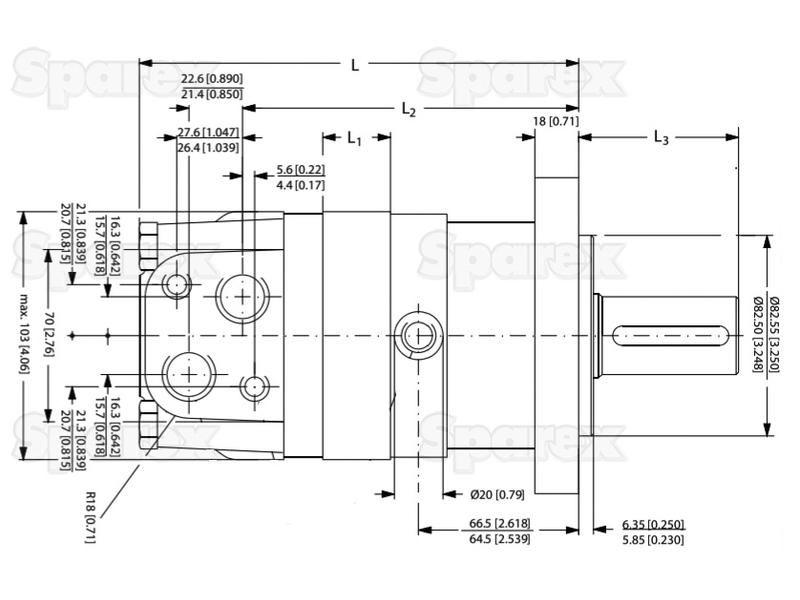

| L mm | 181 |
| L1 mm | 27.8 |
| L2 mm | 138 |
| L3 mm | 67 |
| Main Port Thread Size | 1/2'' |
| Maximum Continuous KW Power | 16.5 |
| Maximum Continuous Torque Nm | 490 |
| Maximum Continuous Working Pressure Bar | 210 |
| Maximum Flow Rate LPM | 75 |
| Maximum Peak Torque Nm | 600 |
| Maximum Peak Working Pressure Bar | 280 |
| Maximum RPM | 470 |
| Model | OMS160 |
| Reference | 151F0503 |
| Related Products | 137149 |
| Seal Kit and Repair Kits | S.137149 |

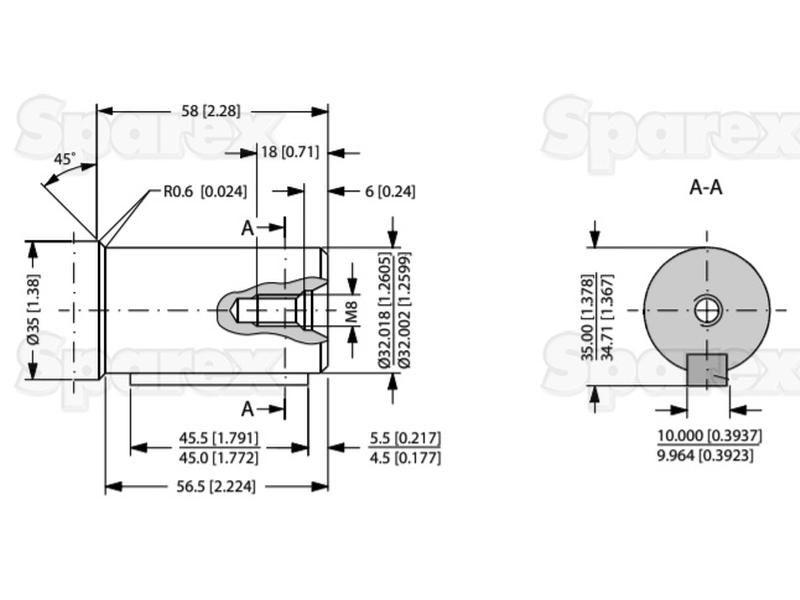

| Shaft Ø mm | 32 |
| Shaft type | Straight / Parallel |
| Tariff Code | 8708999790 |
| Thread type | BSP |
Manufacturer Part Numbers
| Danfoss |
|---|
| 151F0203, 151F0503, OMS160, OMS160151F0503 |
