Orbital Hydraulic Motor Danfoss (151B3104, OMV800, OMV800151B3104)
Part Number: S.137153Categories: Hydraulics
Part Number: S.137153
Grade: Replacement
Part Details
Orbital Hydraulic Motor Motor Type: MOMVDisplacement cm°³: 800Flow Rate: 200L/min
Technical Information
| Brand | Trale |
| Displacement cm³ | 800 |
| Drain Port Thread | 1/4" |
| Flange Type | Standard - 4 Hole |
| Hydraulic Motor Type | MOMV |

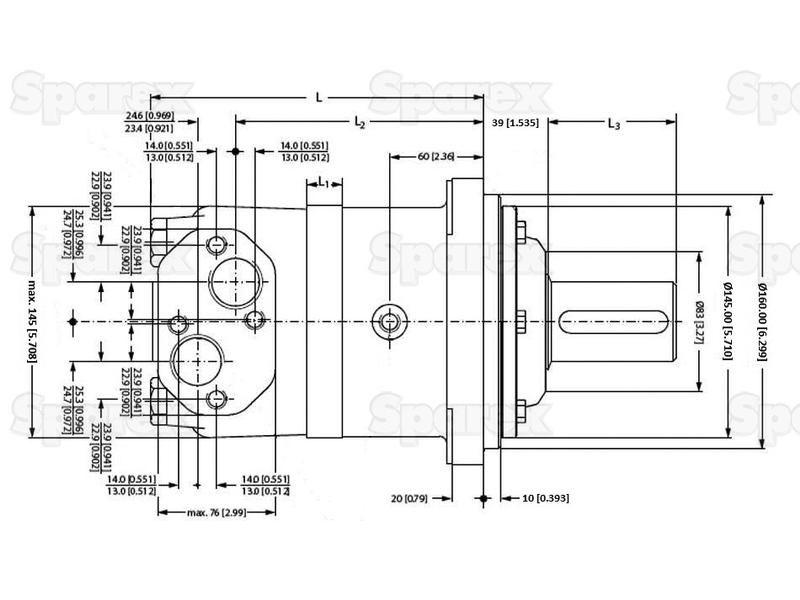

| L mm | 253 |
| L1 mm | 58 |
| L2 mm | 195 |
| L3 mm | 82 |
| Main Port Thread Size | 1" |
| Maximum Continuous KW Power | 35 |
| Maximum Continuous Torque Nm | 177.3 |
| Maximum Continuous Working Pressure Bar | 160 |
| Maximum Flow Rate LPM | 200 |
| Maximum Peak Torque Nm | 2210 |
| Maximum Peak Working Pressure Bar | 210 |
| Maximum RPM | 250 |
| Model | OMV800 |
| Related Products | 153120 |
| Seal Kit and Repair Kits | S.153120 |

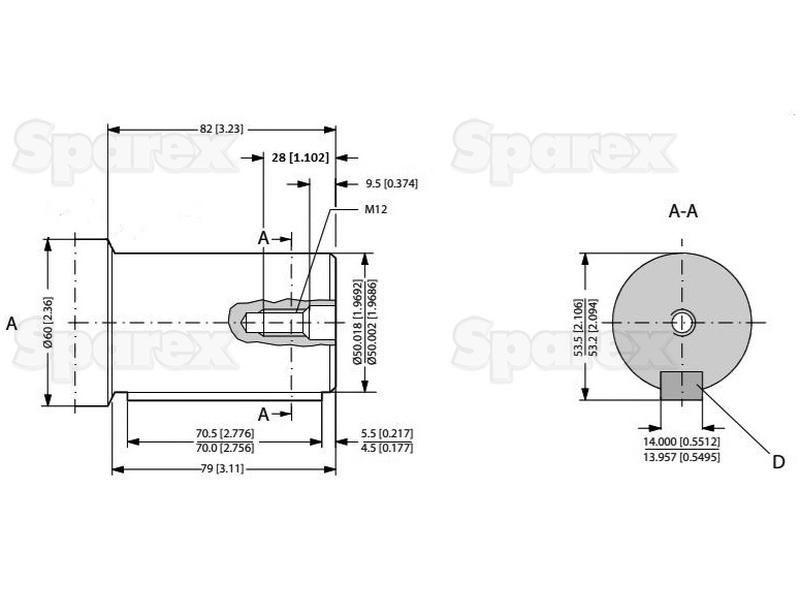

| Shaft Ø mm | 50 |
| Shaft type | Straight / Parallel |
| Tariff Code | 8708999790 |
| Thread type | BSP |
Manufacturer Part Numbers
| Danfoss |
|---|
| 151B3104, OMV800, OMV800151B3104 |
