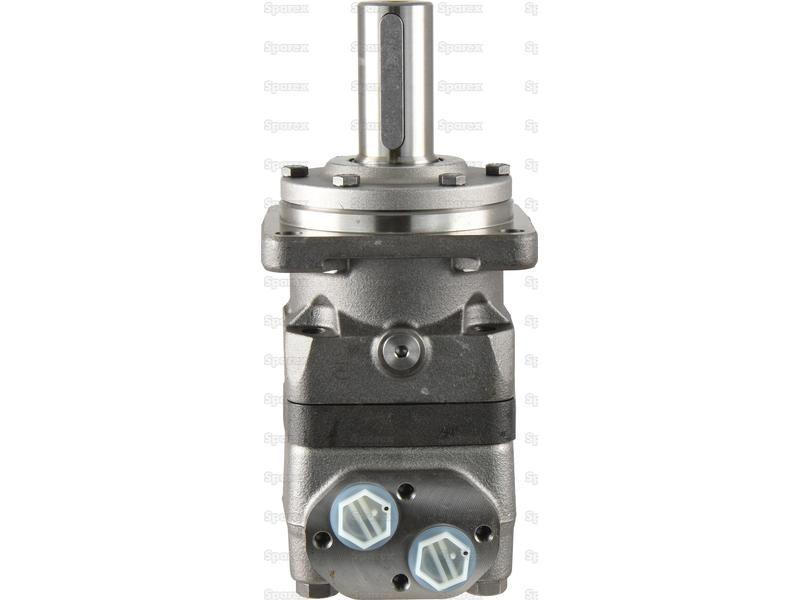

Orbital Hydraulic Motor Danfoss (151B3005, OMT500, OMT500151B3005)
Part Number: S.137159Categories: Hydraulics
Part Number: S.137159
Grade: Replacement
Part Details
Orbital Hydraulic Motor Motor Type: OMTDisplacement cm°³: 523.6Flow Rate: 125L/min
Technical Information
| Brand | Danfoss |
| Displacement cm³ | 523.6 |
| Drain Port Thread | 1/4'' |

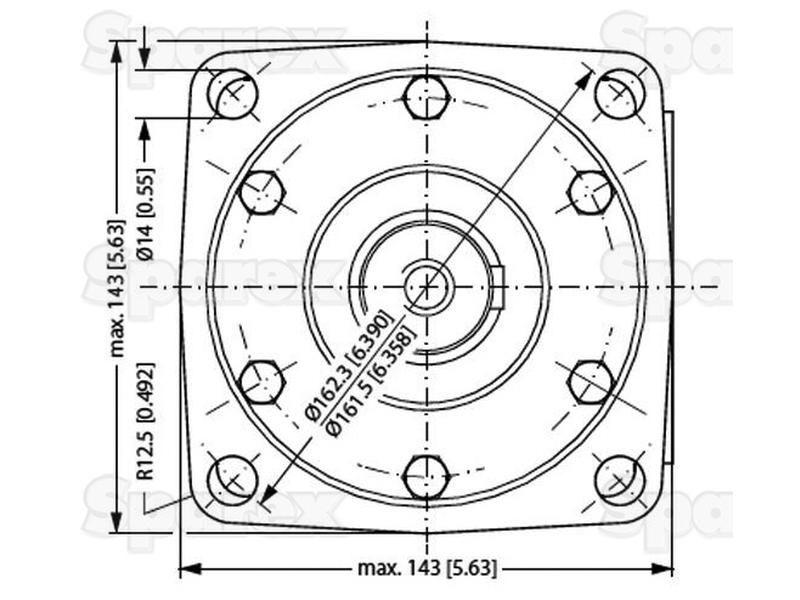

| Flange Type | Standard - 4 Hole |
| Hydraulic Motor Type | OMT |

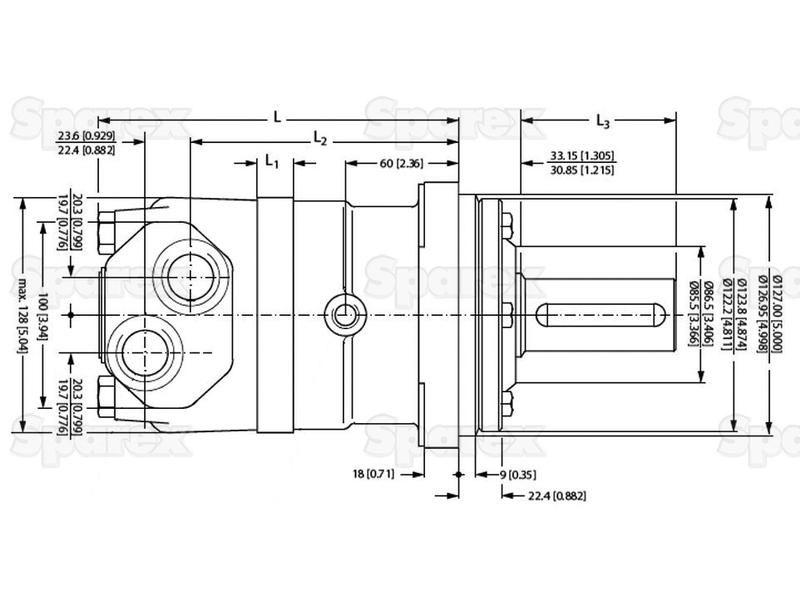

| L mm | 235 |
| L1 mm | 61.5 |
| L2 mm | 185 |
| L3 mm | 82 |
| Main Port Thread Size | 3/4'' |
| Maximum Continuous KW Power | 26.5 |
| Maximum Continuous Torque Nm | 1220 |
| Maximum Continuous Working Pressure Bar | 160 |
| Maximum Flow Rate LPM | 125 |
| Maximum Peak Torque Nm | 1370 |
| Maximum Peak Working Pressure Bar | 210 |
| Maximum RPM | 240 |
| Model | OMT500 |
| Reference | 151B3005 |
| Related Products | 153122 |
| Seal Kit and Repair Kits | S.153122 |

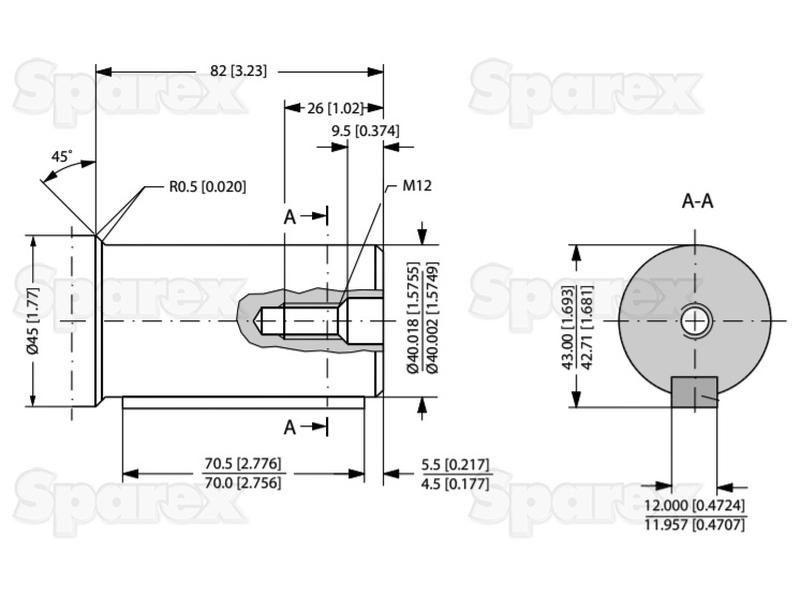

| Shaft Ø mm | 40 |
| Shaft type | Straight / Parallel |
| Tariff Code | 8708999790 |
| Thread type | BSP |
Manufacturer Part Numbers
| Danfoss |
|---|
| 151B3005, OMT500, OMT500151B3005 |
