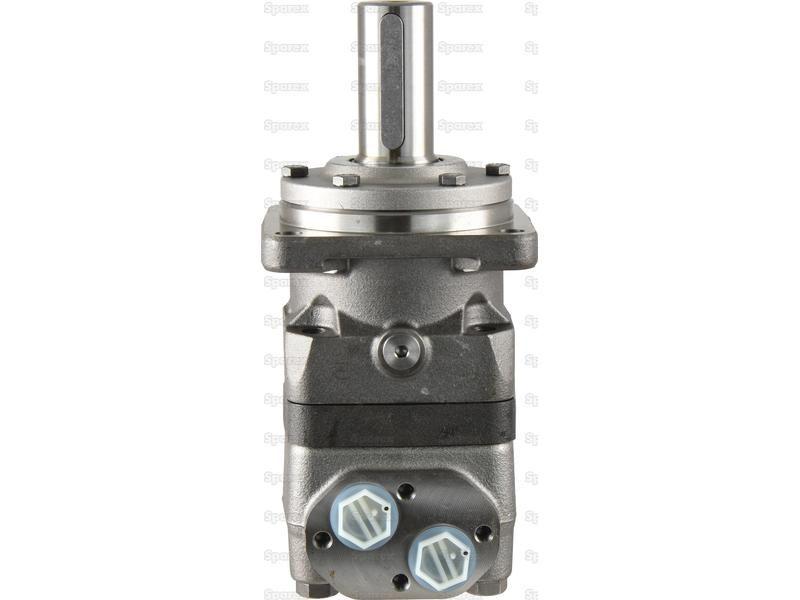

Orbital Hydraulic Motor Danfoss (151B3001, OMT200, OMT200151B3001)
Part Number: S.137147Categories: Hydraulics
Part Number: S.137147
Grade: Replacement
Part Details
Orbital Hydraulic Motor Motor Type: OMTDisplacement cm°³: 201.4Flow Rate: 125L/min
Technical Information
| Brand | Danfoss |
| Displacement cm³ | 201.4 |
| Drain Port Thread | 1/4'' |

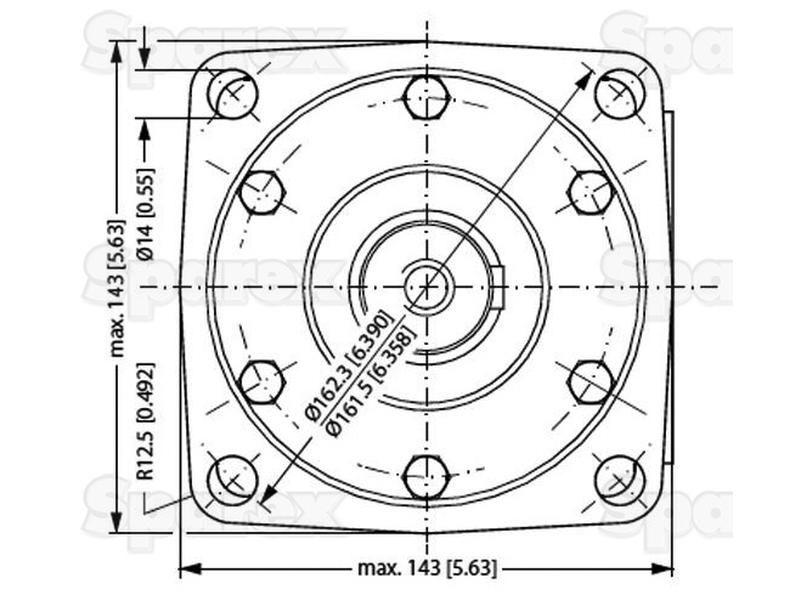

| Flange Type | Standard - 4 Hole |
| Hydraulic Motor Type | OMT |

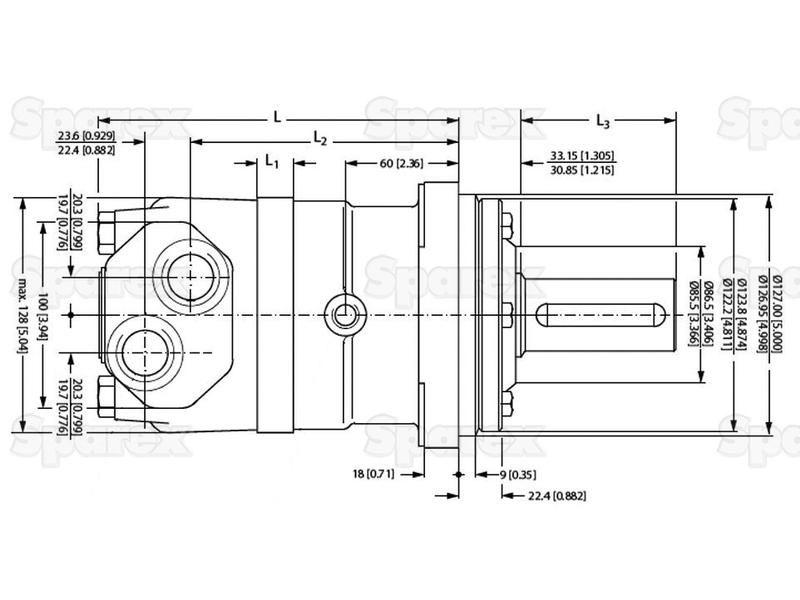

| L mm | 195 |
| L1 mm | 21.5 |
| L2 mm | 145 |
| L3 mm | 82 |
| Main Port Thread Size | 3/4'' |
| Maximum Continuous KW Power | 33.5 |
| Maximum Continuous Torque Nm | 590 |
| Maximum Continuous Working Pressure Bar | 200 |
| Maximum Flow Rate LPM | 125 |
| Maximum Peak Torque Nm | 710 |
| Maximum Peak Working Pressure Bar | 280 |
| Maximum RPM | 625 |
| Model | OMT200 |
| Reference | 151B3001 |
| Related Products | 153122 |
| Seal Kit and Repair Kits | S.153122 |

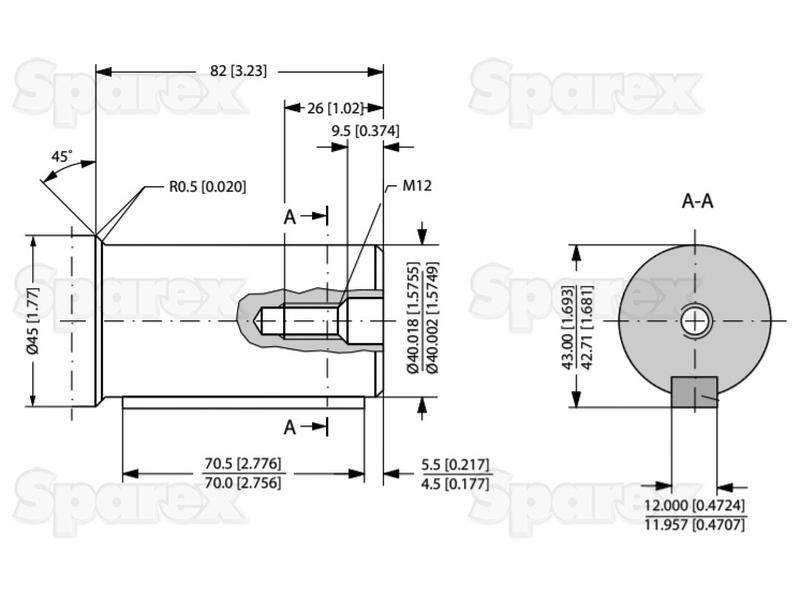

| Shaft Ø mm | 40 |
| Shaft type | Straight / Parallel |
| Tariff Code | 8708999790 |
| Thread type | BSP |
Manufacturer Part Numbers
| Danfoss |
|---|
| 151B3001, OMT200, OMT200151B3001 |
