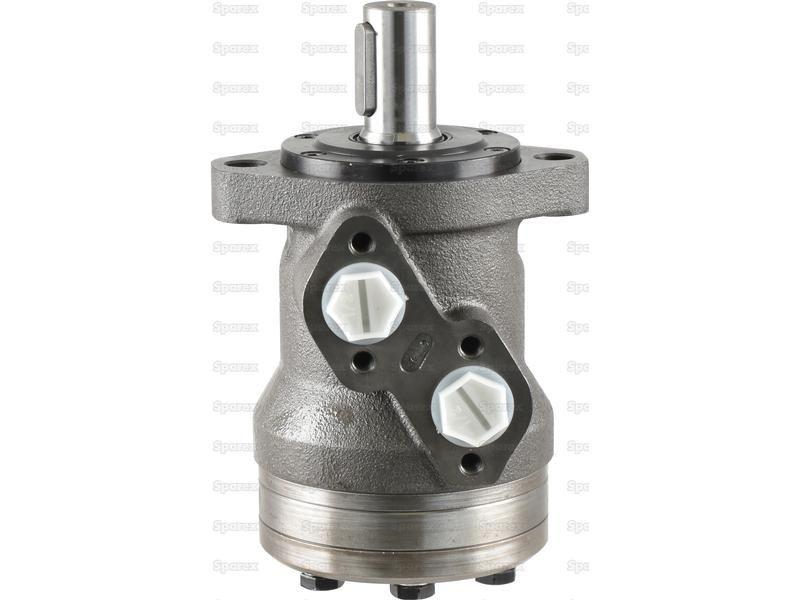

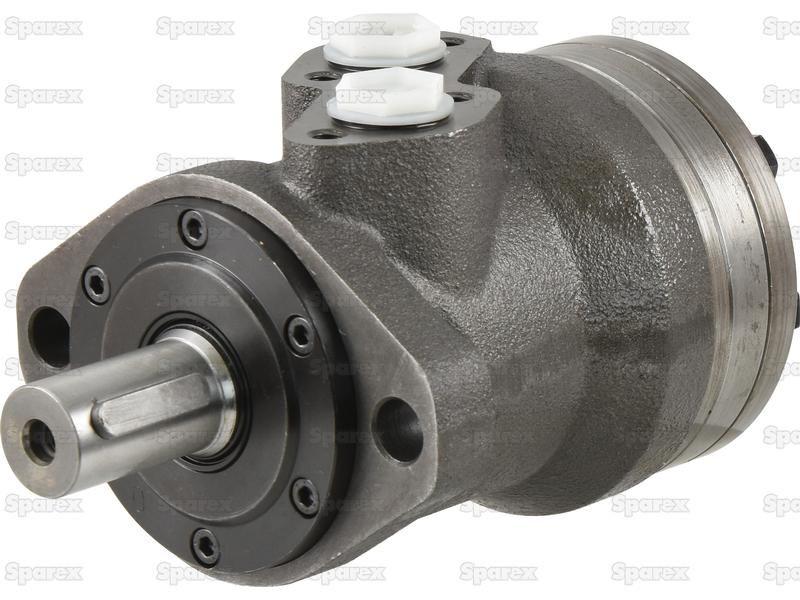

Orbital Hydraulic Motor Danfoss (1510713, OMR125, OMR1251510713)
Part Number: S.137194Categories: Hydraulics
Part Number: S.137194
Grade: Replacement
Part Details
Orbital Hydraulic Motor Motor Type: MOMRDisplacement cm°³: 125Flow Rate: 60L/min
Technical Information
| Brand | Trale |
| Displacement cm³ | 125 |
| Drain Port Thread | 1/4" |
| Flange Type | SAE Flange - 2 Hole |
| Hydraulic Motor Type | MOMR |

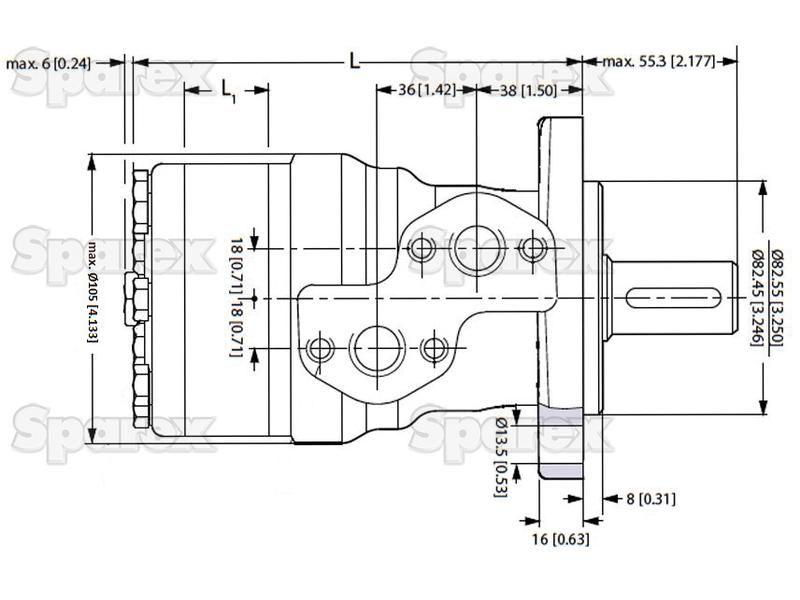

| L mm | 152 |
| L1 mm | 22 |
| Main Port Thread Size | 1/2'' |
| Maximum Continuous KW Power | 10 |
| Maximum Continuous Torque Nm | 23.7 |
| Maximum Continuous Working Pressure Bar | 140 |
| Maximum Flow Rate LPM | 60 |
| Maximum Peak Torque Nm | 33.8 |
| Maximum Peak Working Pressure Bar | 200 |
| Maximum RPM | 470 |
| Model | OMR125 |
| Related Products | 153128 |
| Seal Kit and Repair Kits | S.153128 |

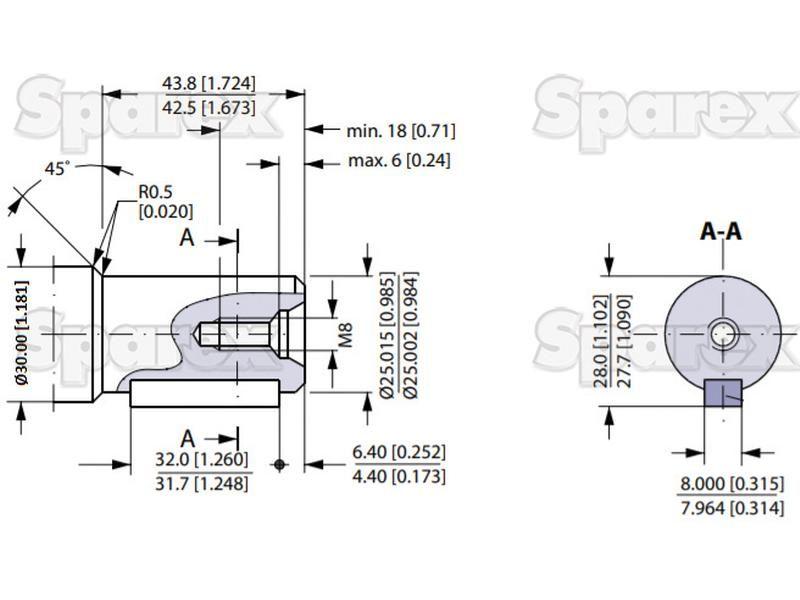

| Shaft Ø mm | 25 |
| Shaft type | Straight / Parallel |
| Tariff Code | 8708999790 |
| Thread type | BSP |
Manufacturer Part Numbers
| Danfoss |
|---|
| 1510713, OMR125, OMR1251510713 |
