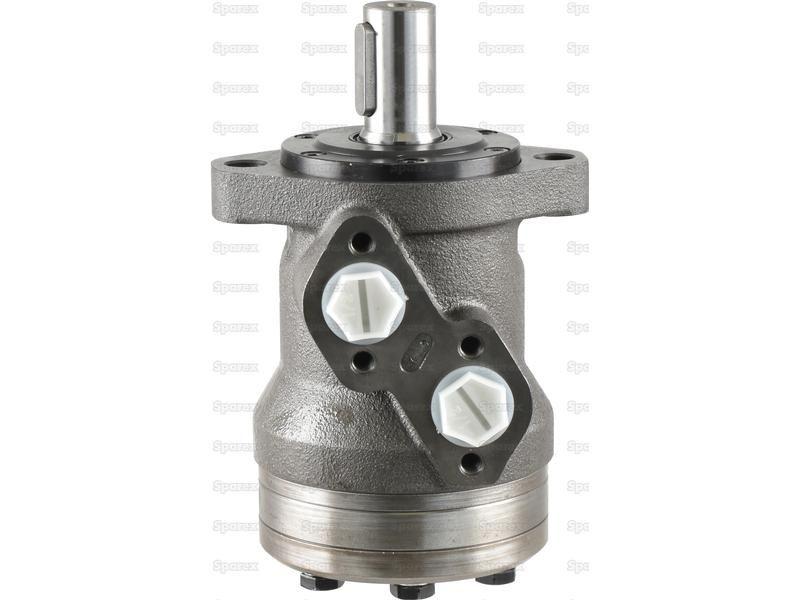

Orbital Hydraulic Motor Danfoss (1510410, OMR50, OMR501510410)
Part Number: S.137183Categories: Hydraulics
Part Number: S.137183
Grade: Replacement
Part Details
Orbital Hydraulic Motor Motor Type: MOMRDisplacement cm°³: 50Flow Rate: 40L/min
Technical Information
| Brand | Trale |
| Displacement cm³ | 50 |
| Drain Port Thread | 1/4" |
| Flange Type | SAE Flange - 2 Hole |
| Hydraulic Motor Type | MOMR |

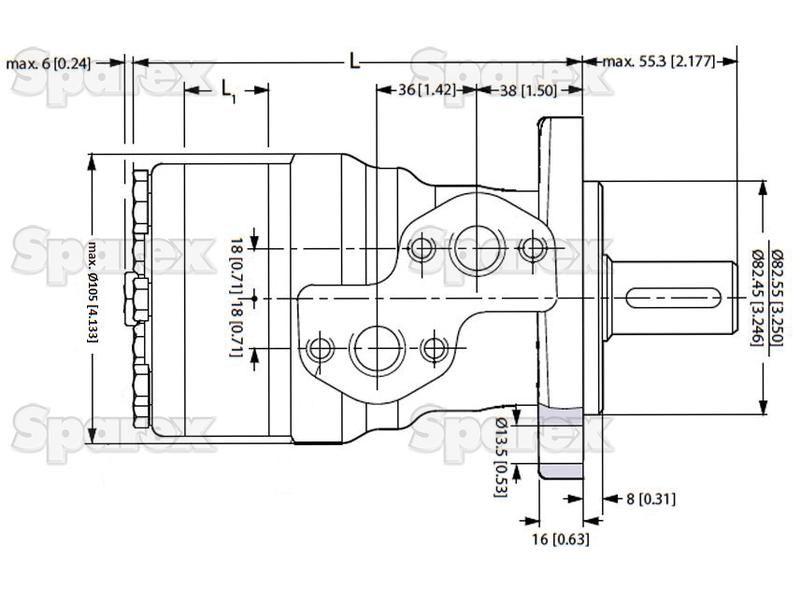

| L mm | 139 |
| L1 mm | 9 |
| Main Port Thread Size | 1/2'' |
| Maximum Continuous KW Power | 7 |
| Maximum Continuous Torque Nm | 9.3 |
| Maximum Continuous Working Pressure Bar | 140 |
| Maximum Flow Rate LPM | 40 |
| Maximum Peak Torque Nm | 13.5 |
| Maximum Peak Working Pressure Bar | 210 |
| Maximum RPM | 770 |
| Model | OMR50 |
| Related Products | 153128 |
| Seal Kit and Repair Kits | S.153128 |

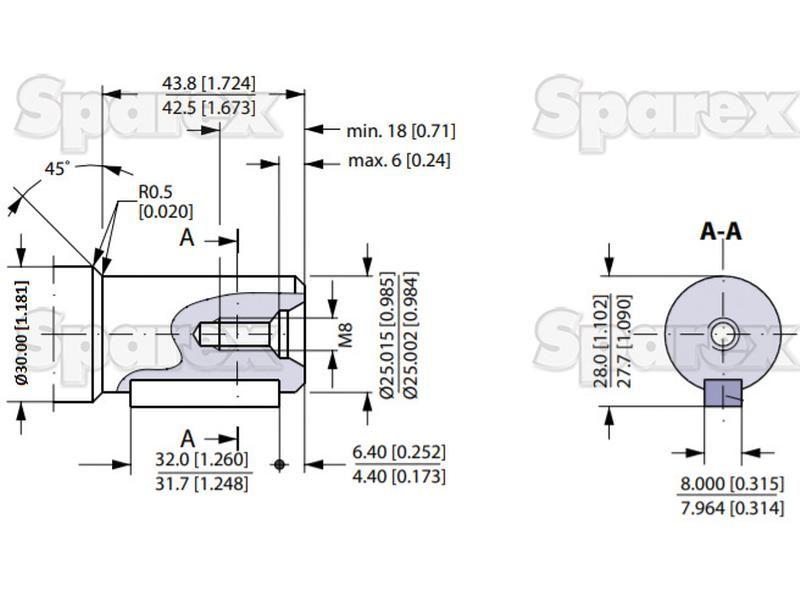

| Shaft Ø mm | 25 |
| Shaft type | Straight / Parallel |
| Tariff Code | 8708999790 |
| Thread type | BSP |
Manufacturer Part Numbers
| Danfoss |
|---|
| 1510410, OMR50, OMR501510410 |
