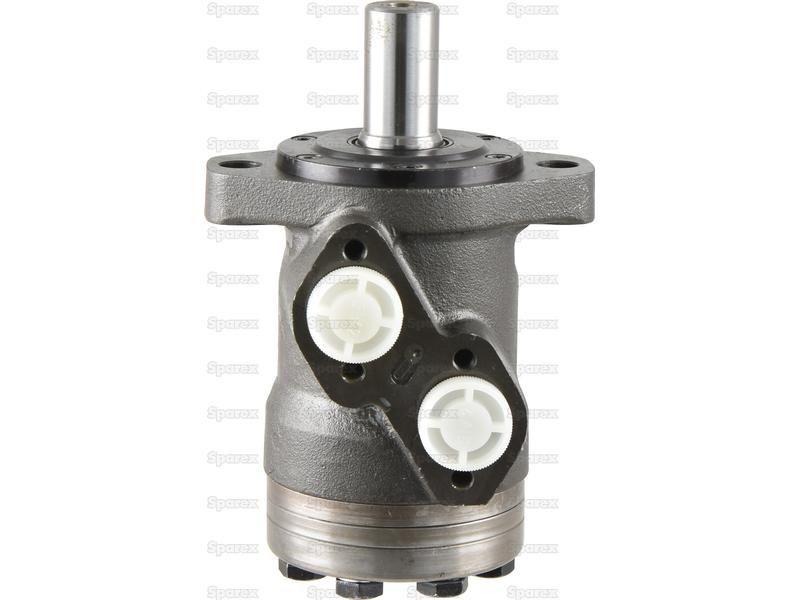

Orbital Hydraulic Motor Danfoss (1510313, OMP125, OMP1251510313)
Part Number: S.137175Categories: Hydraulics
Part Number: S.137175
Grade: Replacement
Part Details
Orbital Hydraulic Motor Motor Type: MOMPDisplacement cm°³: 125Flow Rate: 60L/min
Technical Information
| Brand | Trale |
| Displacement cm³ | 125 |
| Drain Port Thread | 1/4" |

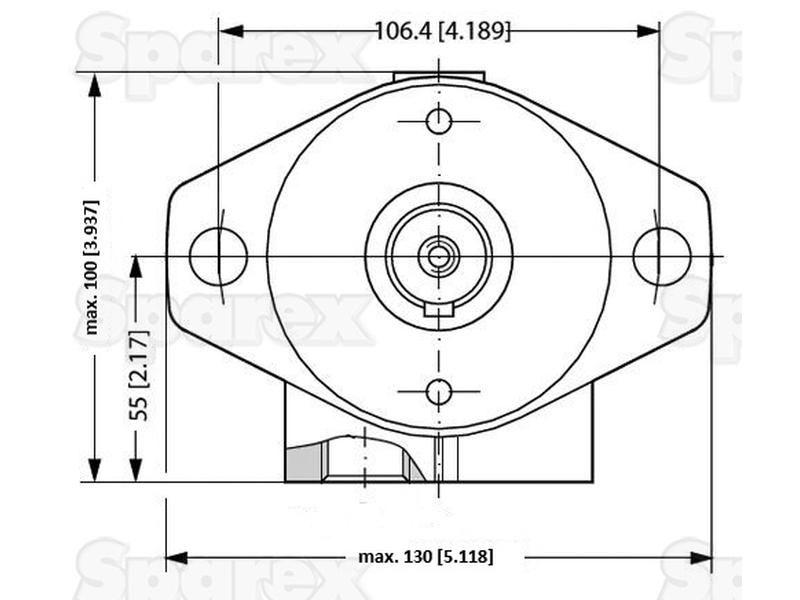

| Flange Type | SAE Flange - 2 Hole |
| Hydraulic Motor Type | MOMP |

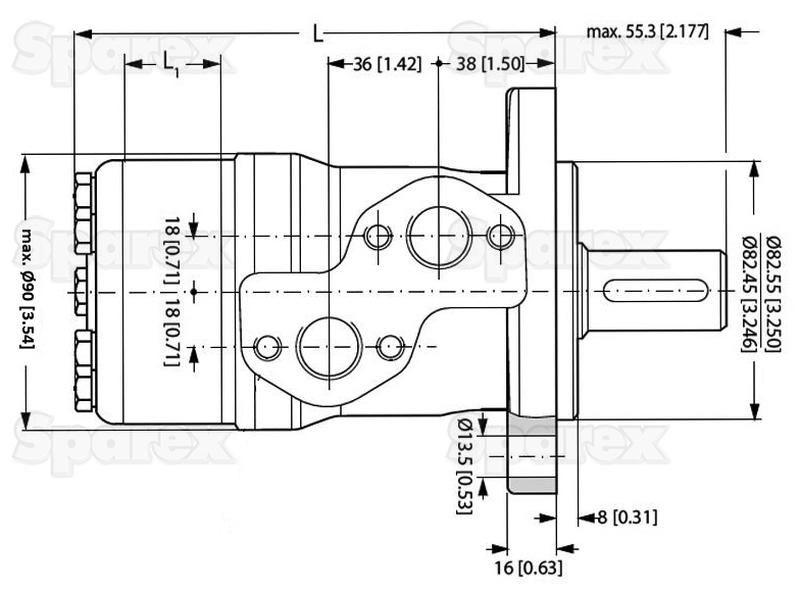

| L mm | 150 |
| L1 mm | 16 |
| Main Port Thread Size | 1/2'' |
| Maximum Continuous KW Power | 10 |
| Maximum Continuous Torque Nm | 23.4 |
| Maximum Continuous Working Pressure Bar | 140 |
| Maximum Flow Rate LPM | 60 |
| Maximum Peak Torque Nm | 36.2 |
| Maximum Peak Working Pressure Bar | 210 |
| Maximum RPM | 485 |
| Model | OMP125 |
| Related Products | 153127 |
| Seal Kit and Repair Kits | S.137136 |

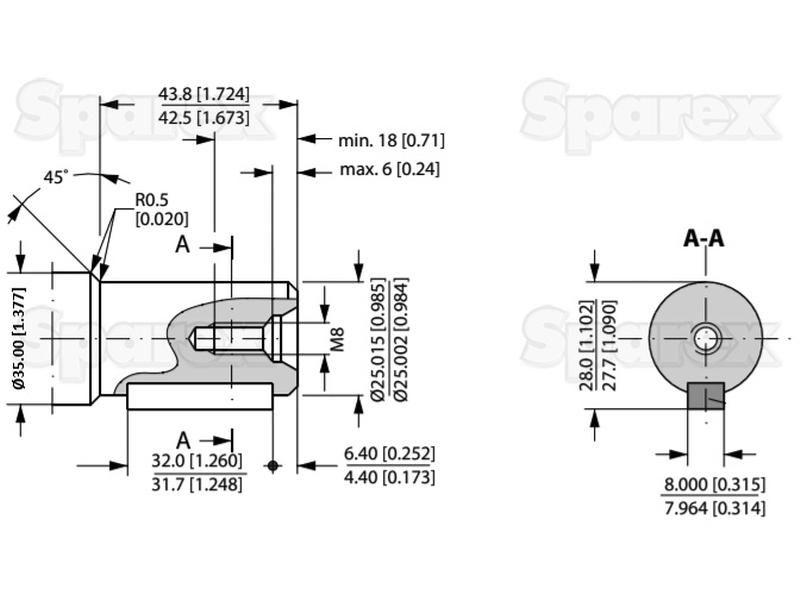

| Shaft Ø mm | 25 |
| Shaft type | Straight / Parallel |
| Tariff Code | 8708999790 |
| Thread type | BSP |
Manufacturer Part Numbers
| Danfoss |
|---|
| 1510313, OMP125, OMP1251510313 |
