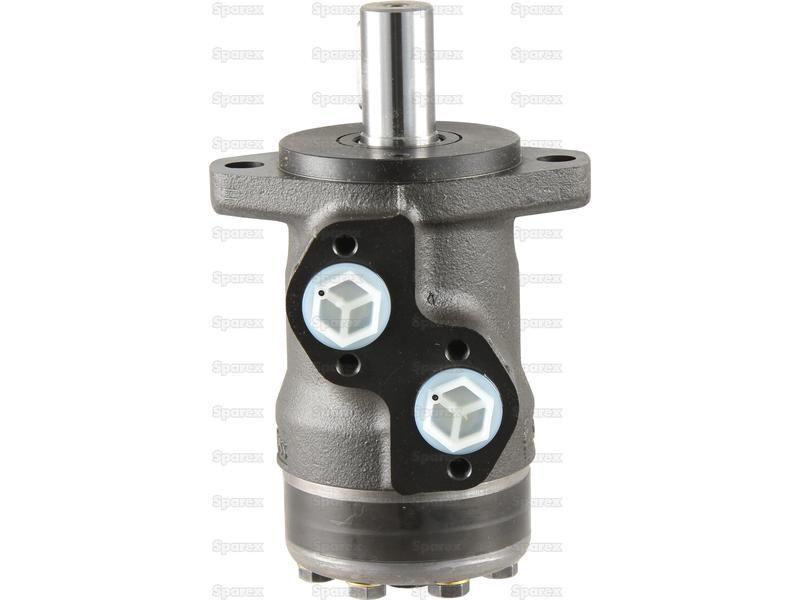

Orbital Hydraulic Motor Danfoss (11186719, 1510342, 1510642, OMP40, OMP401510342)
Part Number: S.137198Categories: Hydraulics
Part Number: S.137198
Grade: Replacement
Part Details
Orbital Hydraulic Motor Motor Type: OMPDisplacement cm°³: 40Flow Rate: 60L/min
Technical Information
| Brand | Danfoss |
| Displacement cm³ | 40 |
| Drain Port Thread | 1/4" |
| Flange Type | Oval Mounting Flange - 2 Hole |
| Hydraulic Motor Type | OMP |

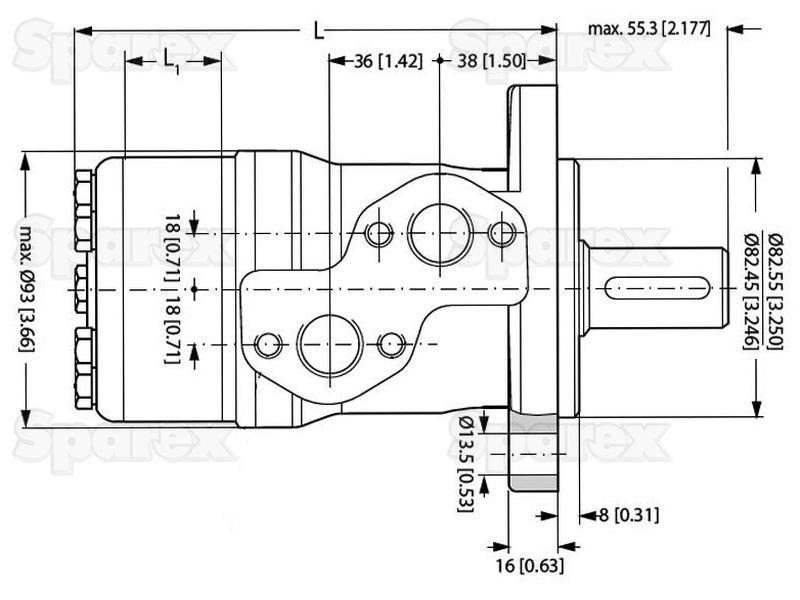

| L mm | 132 |
| L1 mm | 6.5 |
| Main Port Thread Size | 1/2" |
| Maximum Continuous KW Power | 7 |
| Maximum Continuous Torque Nm | 52 |
| Maximum Continuous Working Pressure Bar | 100 |
| Maximum Flow Rate LPM | 60 |
| Maximum Peak Torque Nm | 107 |
| Maximum Peak Working Pressure Bar | 225 |
| Maximum RPM | 1500 |
| Model | OMP40 |
| Reference | 11186719 |
| Related Products | 137136, 137163 |
| Seal Kit and Repair Kits | S.137136 |

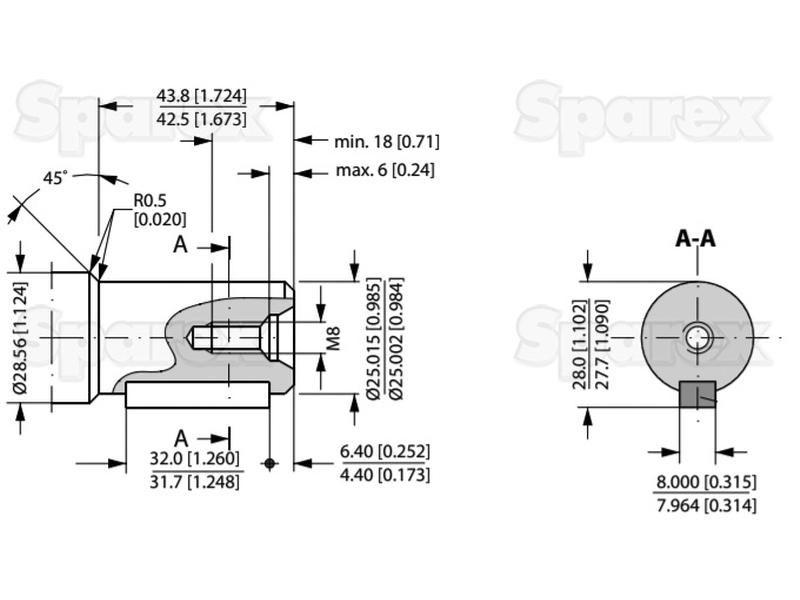

| Shaft Ø mm | 25 |
| Shaft type | Straight / Parallel |
| Tariff Code | 8708999790 |
| Thread type | BSP |
Manufacturer Part Numbers
| Danfoss |
|---|
| 11186719, 1510342, 1510642, OMP40, OMP401510342 |
