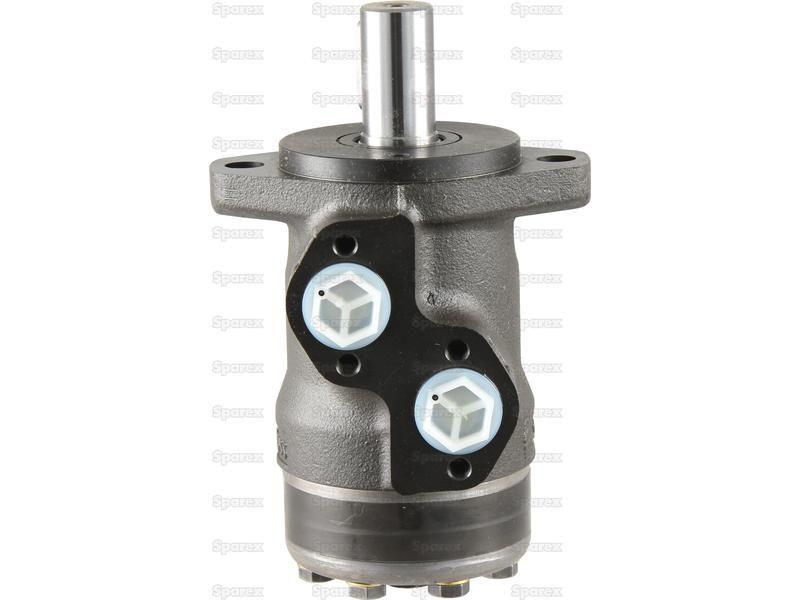

Orbital Hydraulic Motor Danfoss (11186705, 1510314, 1510614, OMP160, OMP1601510314)
Part Number: S.137132Categories: Hydraulics
Part Number: S.137132
Grade: Replacement
Part Details
Orbital Hydraulic Motor Motor Type: OMPDisplacement cm°³: 155.7Flow Rate: 60L/min
Technical Information
| Brand | Danfoss |
| Displacement cm³ | 155.7 |
| Drain Port Thread | 1/4" |

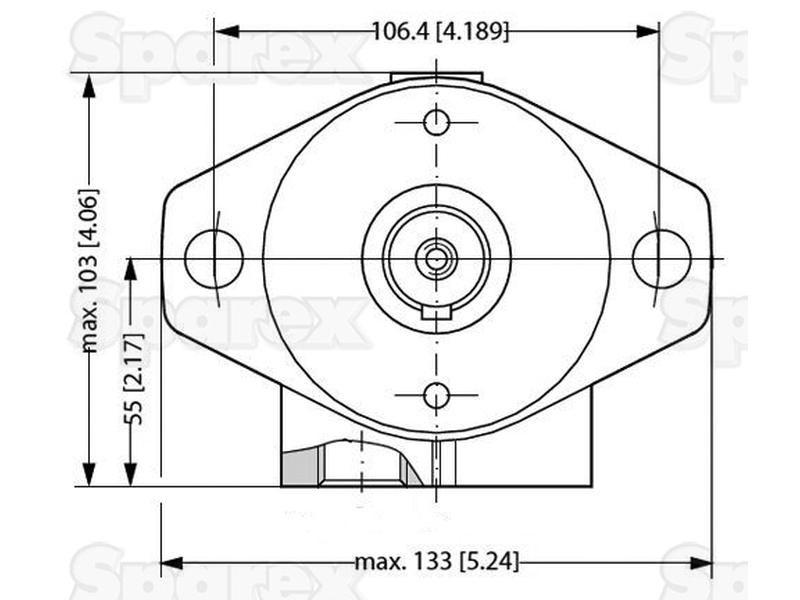

| Flange Type | SAE Flange - 2 Hole |
| Hydraulic Motor Type | OMP |

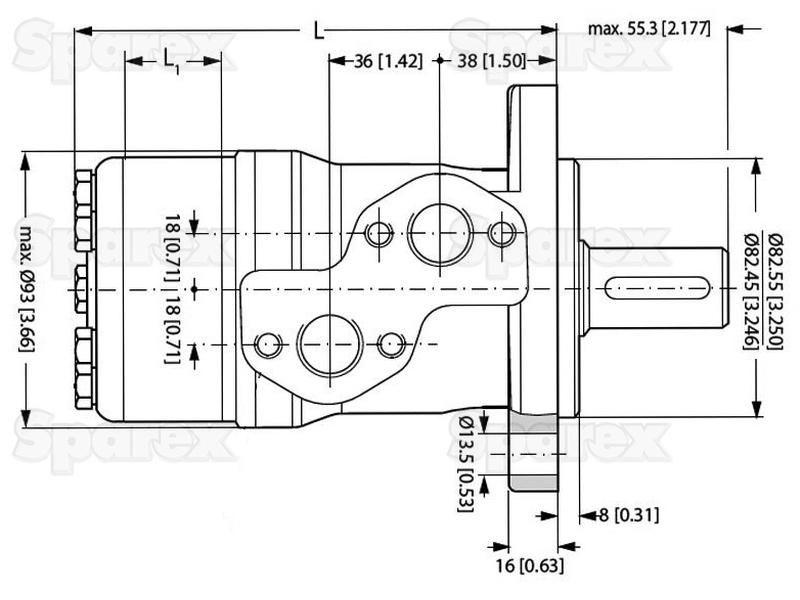

| L mm | 146.5 |
| L1 mm | 20.8 |
| Main Port Thread Size | 1/2" |
| Maximum Continuous KW Power | 10 |
| Maximum Continuous Torque Nm | 300 |
| Maximum Continuous Working Pressure Bar | 140 |
| Maximum Flow Rate LPM | 60 |
| Maximum Peak Torque Nm | 430 |
| Maximum Peak Working Pressure Bar | 225 |
| Maximum RPM | 385 |
| Model | OMP160 |
| Reference | 11186705 |
| Related Products | 137136, 137163 |
| Seal Kit and Repair Kits | S.137136 |

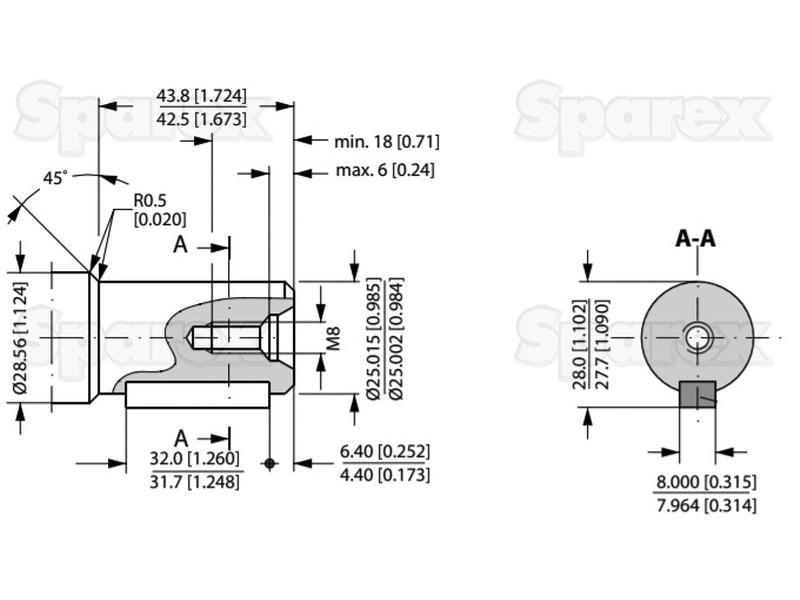

| Shaft Ø mm | 25 |
| Shaft type | Straight / Parallel |
| Tariff Code | 8708999790 |
| Thread type | BSP |
Manufacturer Part Numbers
| Danfoss |
|---|
| 11186705, 1510314, 1510614, OMP160, OMP1601510314 |
